TA3216M4Z1218T, TA3217, TA32305FNG

Table of contents:
Info of TA3216M4Z1218T
Info of TA3217
Info of TA32305FNG

TA3216M4Z1218T, TA3217, TA32305FNG Selling Leads, Datasheet

MFG:Toshiba Category:RF and RFID Package Cooled:06+ D/C:3000

TA3216M4Z1218T, TA3217, TA32305FNG Datasheet download

Five Points

Part Number: TA32305FNG

Category: RF and RFID

MFG: Toshiba

Package Cooled: 06+

D/C: 3000

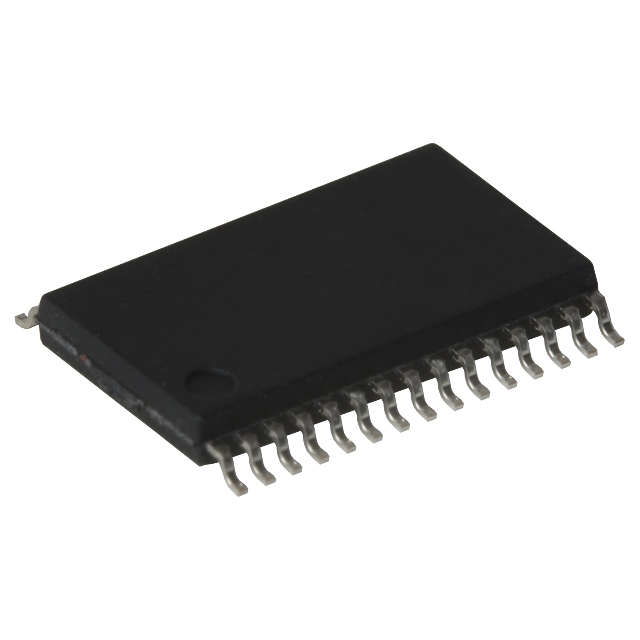

Description: IC TRANSCEIVER RF 450MHZ 30-SSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TA32305FNG Parameters

Technical/Catalog Information	TA32305FNG
Vendor	Toshiba
Category	RF and RFID
Frequency	240MHz ~ 450MHz
Data Rate - Maximum	-
Modulation or Protocol	ASK, FM, FSK
Applications	General Data Transfer
Power - Output	-
Sensitivity	-
Voltage - Supply	2.2 V ~ 5.5 V
Current - Receiving	5.6mA
Current - Transmitting	4.3mA
Package / Case	30-SSOP
Operating Temperature	-40°C ~ 85°C
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Packaging	Tape & Reel (TR)
Memory Size	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TA32305FNG TA32305FNG TA32305FNGTR ND TA32305FNGTRND TA32305FNGTR

TA32305FNG General Description

The TA32305FN is an RF 1 chip receiver and transmitter IC.Receiver is for AM/FM radio. The IC incorporates an RF amp, 2-level comparator, and local *8 circuit. This IC's main use is remote control.

TA32305FNG Maximum Ratings

Characteristics	Symbol	Rating	Unit
Supply voltage	V_CC	6	V
Power dissipation	P_D	860	mW
Operating temperature range	T_opr	-40~85
Storage temperature range	T_stg	-55~150

The maximum ratings must not be exceeded at any time. Do not operate the device under conditions outside the above ratings.

TA32305FNG Features

` RF frequency: 240 to 450 MHz (multiplication is used)
` IF frequency: 80 kHz
` Operating voltage range: 2.2 to 5.5 V
` Current dissipation: TX 4.3 mA/ RX 5.6 mA (FM), 5.3 mA (AM) (except current at oscillator circuit)
` Current dissipation at BS: 0 A (typ.)
` Small package: 30-pin SSOP (0.65 mm pitch)
