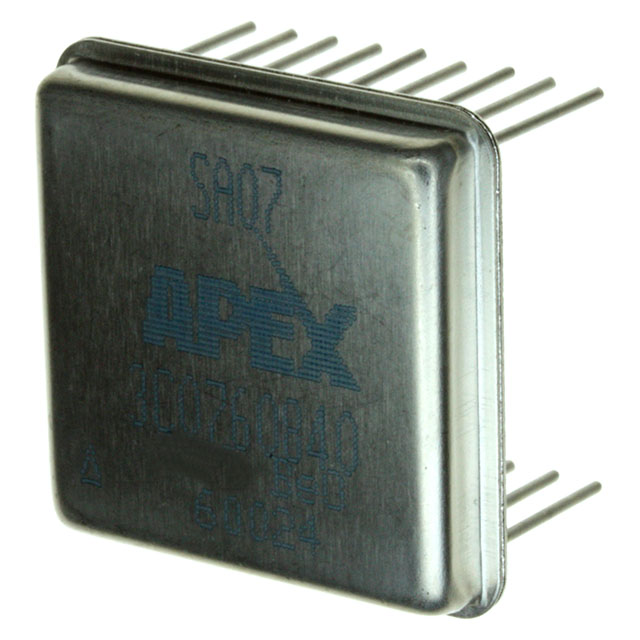

SA07, SA08, SA08011 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: SIP5
D/C: 09+
Description: IC PWM AMP 450V 20A 12-PWRDIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SA07
File Size: 66418 KB
Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SA08
File Size: 558025 KB
Manufacturer: APEX
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SA01
File Size: 66418 KB
Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | SA07 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Applications | DC Motor Controller |
| Number of Outputs | 1 |
| Voltage - Supply | 10 V ~ 16 V |
| Voltage - Load | 5 V ~ 40 V |
| Current - Output | 5A |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 18-DIP |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SA07 SA07 598 1453 ND 5981453ND 598-1453 |
|
Symbo |
Parameter |
SA01 |
SA02 |
SA04 |
SA07 |
Unit | ||||
|
Main |
Aux |
Main |
Aux |
Main |
Aux |
Main |
Aux | |||
|
VDRM (1) |
Repetitive peak off-state voltage |
400 |
V | |||||||
|
VDSM (1) |
Non-repetitive peak off-state voltage |
480 |
600 |
480 |
600 |
480 |
600 |
450 |
600 |
V |
|
VRRM |
Repetitive peak reverse voltage |
400 |
V | |||||||
|
- |
Pulse current ability |
See electrical characteristics |
A | |||||||
|
IFGM |
Peak gate forward current |
0.5 |
0.3 |
0.5 |
1.0 |
1.0 |
1.0 |
0.5 |
0.3 |
A |
|
Topr |
Operating ambient temperature |
20 ~ +60 |
||||||||
|
Tstg |
Storage temperature |
40 ~ +125 |
||||||||
| (1). Connect 1kW resistor between gate to cathode. | ||||||||||
| Technical/Catalog Information | SA08 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Applications | PWM Motor Driver |
| Number of Outputs | 1 |
| Voltage - Supply | 14 V ~ 16 V |
| Voltage - Load | 16 V ~ 450 V |
| Current - Output | 20A |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 12-DIP Module |
| Packaging | Tube |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Compliant by Exemption |
| Other Names | SA08 SA08 598 1363 ND 5981363ND 598-1363 |
The SA08 is a pulse width modulation amplifier that can supply 9KW to the load. An internal oscillator requires no external components. The clock input stage divides the oscillator frequency by two, which provides the switching frequency of 22.5 kHz. The oscillator may also be used to synchronize multiple amplifiers. Current sensing is provided for each half of the bridge giving amplitude and direction data. A shutdown input turns off all four drivers of the H-bridge output. A high side current limit and the programmable low side current limit protect the amplifier from shorts to supply or ground in addition to load shorts. The H-bridge output IGBTs are protected from thermal overloads by directly sensing the temperature of the die. The 12-pin hermetic MO-127 power package occupies only 3 square inches of board space.
Price: 4-6 USD
