RF3374TR7, RF3375, RF3376SR

Table of contents:
Info of RF3374TR7
Info of RF3375
Info of RF3376SR

RF3374TR7, RF3375, RF3376SR Selling Leads, Datasheet

MFG:RFMD (VA) Category:RF and RFID Package Cooled:N/A D/C:09+

RF3374TR7, RF3375, RF3376SR Datasheet download

Five Points

Part Number: RF3374TR7

Category: RF and RFID

MFG: RFMD (VA)

Package Cooled: N/A

D/C: 09+

Description: IC AMP HBT GAAS GEN-PUR SOT-89

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RF3374TR7 Parameters

Technical/Catalog Information	RF3374TR7
Vendor	RFMD (VA)
Category	RF and RFID

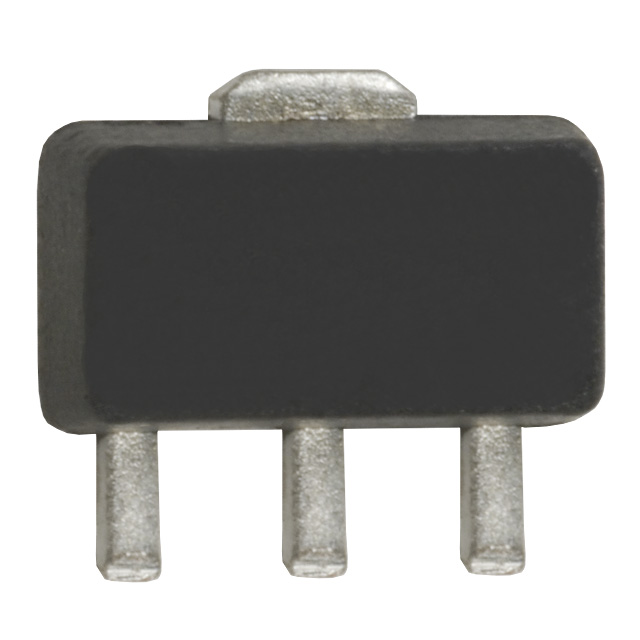

Package / Case	SOT-89
Voltage - Supply	4.5V ~ 4.55V
Current - Supply	65mA ~ 80mA
Gain	18.5dB ~ 21dB
Frequency	0Hz ~ 6GHz
RF Type	General Purpose
Packaging	Cut Tape (CT)
Noise Figure	3.5dB
P1db	17.5dBm
Test Frequency	2GHz
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RF3374TR7 RF3374TR7 689 1020 1 ND 68910201ND 689-1020-1

RF3375 General Description

The RF3375 is a general purpose, low-cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) pro-cess, and has been designed for use as an easily-cas-cadable 50 gain block. Applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 6000MHz.

The device is self-contained with 50? input and output impedances and requires only two external DC-biasing elements to operate as specified.

RF3375 Maximum Ratings

Parameter	Rating	Unit
Input RF Power Operating Ambient Temperature Storage Temperature I_CC	+13 -40 to +85 -60 to +150 80	dBm °C °C mA

RF3375 Features

DC to >6000MHz Operation
Internally Matched Input and Output
13.2dB Small Signal Gain
+28dBm Output IP3
+16.0dBm Output P1dB

RF3375 Typical Application

Basestation Applications
Broadband, Low-Noise Gain Blocks
F or RF Buffer Amplifiers
Driver Stage for Power Amplifiers
Final PA for Low-Power Applications
High Reliability Applications

RF3375 Connection Diagram
