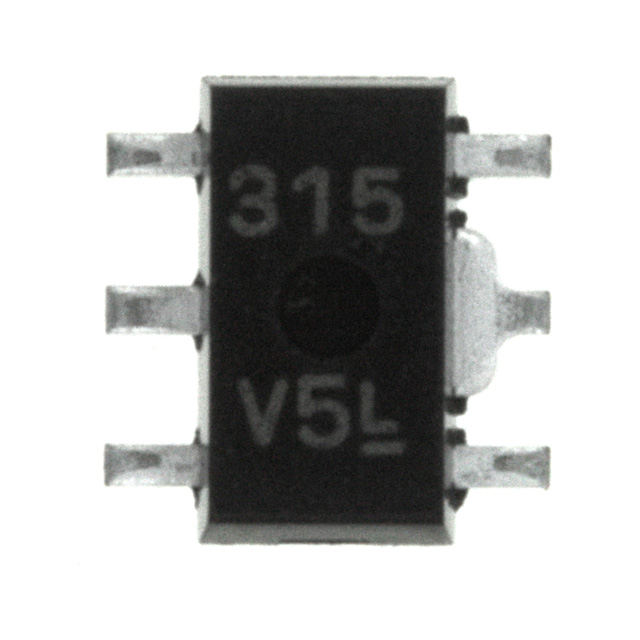

PQ2FADS-VR, PQ2FADS-ZU, PQ2L3152MSPQ Datasheet download
Category: Integrated Circuits (ICs)
MFG: Sharp Microelectronics (VA)
Package Cooled: SOT-89
D/C: 912
Description: IC REG 0.25A DL 3.3V/1.5V SOT-89
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PQ205A1
File Size: 103678 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PQ205A1
File Size: 103678 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PQ2L3152MSPQ
File Size: 356931 KB
Manufacturer: Sharp Electrionic Components
Download : Click here to Download
This document is an operation guide for the PQ2FADS-VR board. It contains operational, functional and general information about the PQ2FADS-VR. This board is meant to serve as a platform for s/w and h/w development for the POWER QUICC II family of processors in a TEPBGA package (516 Pins for Hip4 and Hip7). Using its on-board resources and a debugger, a developer is able to download code, run it, set breakpoints, display memory and registers and connect proprietary h/w via the expansion connectors, to be incorporated into a desired system with the POWER QUICC II processors.
This board could also be used as a demonstration tool (i.e., application s/w may be programmed1 into its Flash memory and ran in exhibitions etc.).
• Supports MPC8250 (Hip4) and MPC8275 (Hip7) processors.
• 64 bit PowerQUICC II Communication Processor, running @ up to 100MHz external bus frequency.
• 32 MByte Synchronous Dram (soldered on-board), residing on 60X bus (PBI mode) with optional parity support, controlled by SDRAM machine 1. Optional address Latch - Multiplexer is available if L2 cache module is assembled.
• Optional 1/2 MByte L2-Cache on-board using 2 MPC2605 Look-Aside cache modules.
• 8 MByte, 80 pin Flash SIMM, buffered from 60X bus. Support for upto 32 MByte, controlled by GPCM, 5V/12V Programmable, with Automatic Flash SIMM identification, via BCSR. Support for both On and OFF SIMM Flash reset.
• 5V/12V VPP (in-circuit programming voltage) for Flash SIMM - jumper selectable.
• 8 KBytes E2PROM, buffered from the 60x bus, controlled by the GPCM.
• Board Control & Status Register - BCSR, Controlling Boards' Operation.
• On-board COP/JTAG connector.
• On-board logic to support direct connection to standard Parallel Port (EPP/SPP modes) in Desk Top PC for debug purposes using MetroWerks CodeWarrior tools.
• Power-On Reset Option via JTAG.
• Programmable Power-On Reset and Hard-Reset Configuration via E2PROM or via Flash memory for the PQ2 core.
• PCI Local Bus is PCI Standard 2.2 compliant.
• 3 PCI slots are available to host up to 3 masters/targets cards @ 3.3V only - arbitration is supported by the on-chip Arbiter.
• PCI bus supports 25 - 66 MHz @ 3.3V devices (determined by the user).
• Simple generic Interrupt Controller to handle the PCI interrupts (4 in each PCI slot).
• Module Enable Indications for all on-board modules.
• High density (MICTOR) Logic Analyzer connectors, carrying all 60x, local bus and CPM signals, for fast logic analyzer connection.
• 155 Mbps ATM UNI on FCC1 with Optical I/F, connected to the PQ2 via UTOPIA Level 2 I/F supporting 8/16 bit in single/multi PHY, using the PMC-SIERA 5384.
• Two 100/10-Base-T Ports on FCC2 and FCC3 with T.P. I/F, MII/RMII controlled, using Davicom DM9161.
• USB Port, USB 1.1 Standard Compliant, using Philips PDIUSBP11 USB transceiver. USB Port is with shutdown option and speed selectable - BCSR controlled.
• Dual RS232 port residing on SCC1 & SCC2.
• Module disable (i.e., low-power mode) option for all communication transceivers -BCSR controlled, enabling use of communication ports, off-board via the expansion connectors.
• Dedicated PQ2 communication ports expansion connectors for convenient tools' connection, carrying also necessary bus signals, for transceivers' M/P I/F connection. Use is done with 2 X 128 pin DIN 41612 receptacle connectors.
• External Tools' identification & status read capability, via BCSR.
• Separate Power-On Reset Push - Button, Soft / Hard1 Reset Push - Button and ABORT Push - Button.
• ATX Power Supply.
• Multi-Range PQ2 internal logic operation voltage - selectable by jumper between three ranges - 1.3V to 1.7V for MPC8275 (Hip7), 1.7V to 1.9V for PQ2 (Hip4) or 2.3V to 2.7V.
• Software Option Switch provides 8 S/W options via BCSR.
This document is an operation guide for the PQ2FADS-ZU board. It contains operational, functional and general information about the PQ2FADS-ZU. This board is meant to serve as a platform for s/w and h/w development for the POWER QUICC II family of processors. Using its on-board resources and a debugger, a developer is able to download code, run it, set breakpoints, display memory and registers and connect proprietary h/w via the expansion connectors, to be incorporated into a desired system with the POWER QUICC II processors.
This board could also be used as a demonstration tool (i.e., application s/w may be programmed1 into its Flash memory and ran in exhibitions etc.).
• Supports MPC8260 (Hip3), PQ2 (Hip4) and MPC8280 (Hip7) processors.
• 64 bit PowerQUICC II Communication Processor, running @ up to 100MHz external bus frequency.
• 32 MByte Synchronous Dram (soldered on-board), residing on 60X bus (PBI mode) with optional parity support, controlled by SDRAM machine 1. Optional address Latch - Multiplexer is available if L2 cache module is assembled.
• Optional 1/2 MByte L2-Cache on-board using 2 MPC2605 Look-Aside cache modules.
• 8 MByte, 80 pin Flash SIMM, buffered from 60X bus. Support for upto 32 MByte, controlled by GPCM, 5V/12V Programmable, with Automatic Flash SIMM identification, via BCSR. Support for both On and OFF SIMM Flash reset.
• 5V/12V VPP (in-circuit programming voltage) for Flash SIMM - jumper selectable.
• 8 KBytes E2PROM, buffered from the 60x bus, controlled by the GPCM.
• Board Control & Status Register - BCSR, Controlling Boards' Operation.
• On-board COP/JTAG connector.
• On-board logic to support direct connection to standard Parallel Port (EPP/SPP modes) in Desk Top PC for debug purposes using CodeWarrior tools.
• Power-On Reset Option via JTAG.
• Selectable Local bus function - Local Bus SDRAM connection or PCI bus in host mode.
• 8MByte Synchronous Dram (soldered on-board), residing on local bus with optional parity support, controlled by SDRAM machine 2.
• Programmable Power-On Reset and Hard-Reset Configuration via E2PROM or via Flash memory for the PQ2 core.
• PCI Local Bus is PCI Standard 2.2 compliant.
• 3 PCI slots are available to host up to 3 masters/targets cards @ 3.3V only - arbitration is supported by the on-chip Arbiter.
• PCI bus supports 25 - 66 MHz @ 3.3V devices (determined by the user).
• Simple generic Interrupt Controller to handle the PCI interrupts (4 in each PCI slot).
• Module Enable Indications for all on-board modules.
• High density (MICTOR) Logic Analyzer connectors, carrying all 60x, local bus and CPM signals, for fast logic analyzer connection.
• 155 Mbps ATM UNI on FCC1 with Optical I/F, connected to the PQ2 via UTOPIA Level 2 I/F supporting 8/16 bit in single/multi PHY, using the PMC-SIERA 5384.
• Two 100/10-Base-T Ports on FCC2 and FCC3 with T.P. I/F, MII/RMII controlled, using Davicom DM9161.
• USB Port, USB 1.1 Standard Compliant, using Philips PDIUSBP11 USB transceiver. USB Port is with shutdown option and speed selectable - BCSR controlled.
• Dual RS232 port residing on SCC1 & SCC2.
• Module disable (i.e., low-power mode) option for all communication transceivers -BCSR controlled, enabling use of communication ports, off-board via the expansion connectors.
• Dedicated PQ2 communication ports expansion connectors for convenient tools' connection, carrying also necessary bus signals, for transceivers' M/P I/F connection. Use is done with 2 X 128 pin DIN 41612 receptacle connectors.
• External Tools' identification & status read capability, via BCSR.
• Separate Power-On Reset Push - Button, Soft / Hard1 Reset Push - Button and ABORT Push - Button.
• ATX Power Supply.
• Multi-Range PQ2 internal logic operation voltage - selectable by jumper between three ranges - 1.3V to 1.7V for MPC8280 (Hip7), 1.7V to 1.9V for PQ2 (Hip4) or 2.3V to 2.7V for MPC8260 (Hip3).
• Software Option Switch provides 8 S/W options via BCSR.
| Technical/Catalog Information | PQ2L3152MSPQ |
| Vendor | Sharp Microelectronics (VA) |
| Category | Integrated Circuits (ICs) |
| Regulator Type | Multiple Output |
| Package / Case | SOT-89 |
| Packaging | Digi-Reel? |
| Regulator Topology | Positive Fixed |
| Current - Output | 250mA |
| Voltage - Output | 1.5V, 3.3V |
| Operating Temperature | -30°C ~ 80°C |
| Voltage - Input | 2.5 ~ 9 V |
| Number of Regulators | 2 |
| Current - Limit (Min) | 250mA |
| Current Short Circuit (Isc) | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PQ2L3152MSPQ PQ2L3152MSPQ 425 2644 6 ND 42526446ND 425-2644-6 |
