PCA9535DBQR, PCA9535DBQRG4, PCA9535DBR

Table of contents:
Info of PCA9535DBQR
Info of PCA9535DBQRG4
Info of PCA9535DBR

PCA9535DBQR, PCA9535DBQRG4, PCA9535DBR Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:QSOP24 D/C:08+

PCA9535DBQR, PCA9535DBQRG4, PCA9535DBR Datasheet download

Five Points

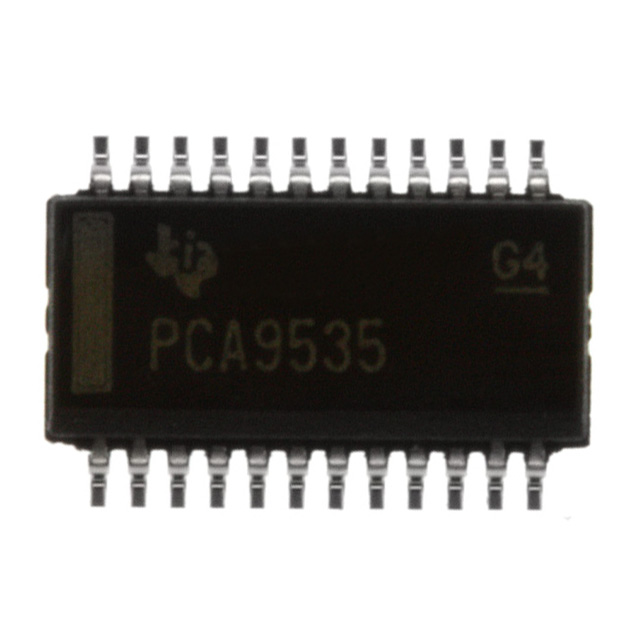

Part Number: PCA9535DBQR

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: QSOP24

D/C: 08+

Description: IC I/O EXPANDER I2C 16B 24SSOP

Price Break

1
25
100
250
500
1000

Unit Price

2.25000
1.80000
1.40000
1.33000
1.30000
1.27500

Extended Price

2.25
45.00
140.00
332.50
650.00
1275.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PCA9535DBQR Parameters

Technical/Catalog Information	PCA9535DBQR
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Interface	I²C, SMBus
Number of I /O	16
Frequency - Clock	400kHz
Voltage - Supply	2.3 V ~ 5.5 V
Package / Case	24-QSOP (SSOP)
Packaging	Digi-Reel?
Operating Temperature	-40°C ~ 85°C
Interrupt Output	Yes
Current - Drive	24mA
Includes	POR
Drawing Number	296; 4073301-4; DBQ; 24
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PCA9535DBQR PCA9535DBQR 296 20947 6 ND 296209476ND 296-20947-6

PCA9535DBQRG4 Parameters

Technical/Catalog Information	PCA9535DBQRG4
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Interface	I²C, SMBus
Number of I /O	16
Frequency - Clock	400kHz
Voltage - Supply	2.3 V ~ 5.5 V
Package / Case	24-QSOP (SSOP)
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Interrupt Output	Yes
Current - Drive	24mA
Includes	POR
Drawing Number	296; 4073301-4; DBQ; 24
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PCA9535DBQRG4 PCA9535DBQRG4

PCA9535DBR Parameters

Technical/Catalog Information	PCA9535DBR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Interface	I²C, SMBus
Number of I /O	16
Frequency - Clock	400kHz
Voltage - Supply	2.3 V ~ 5.5 V
Package / Case	24-SSOP
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C ~ 85°C
Interrupt Output	Yes
Current - Drive	24mA
Includes	POR
Drawing Number	296; 4040065; DB; 14, 16, 20, 24, 28, 30, 38
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PCA9535DBR PCA9535DBR 296 20948 2 ND 296209482ND 296-20948-2
