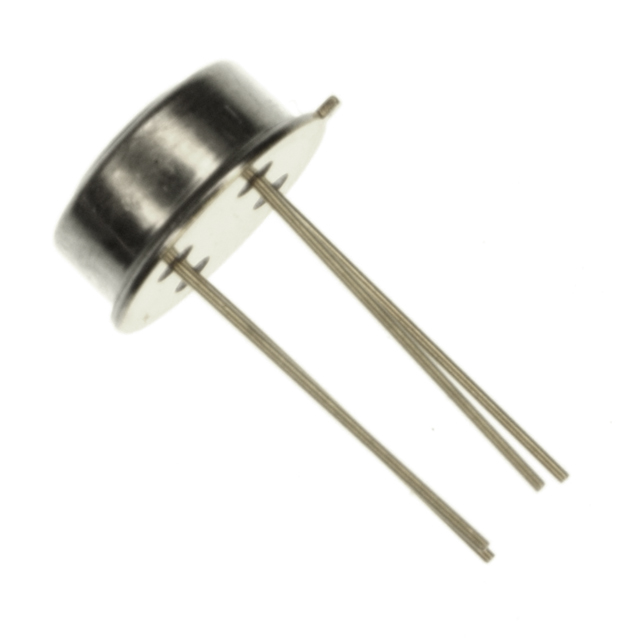

Part Number: MLX90614ESF-AAA

Category: Sensors, Transducers

MFG: Melexis Inc

Package Cooled:

D/C: 09+

Description: IC THERMOMETER IR 5V TO-39

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MLX90601 General Description

The MLX90601 Family modules are versatile IR thermometer modules, which perform signal conditioning, linearisation and ambient temperature compensation. The modules are built around the MLX90313 IR sensor interface, which uses high performance chopper stabilized amplifiers, providing excellent noise performance. The sensing element is the MLX90247 discrete IR thermopile sensor.

The modules are delivered factory calibrated. The output signals can be analog voltage outputs; PWM coded digital outputs, or a bidirectional SPI compatible serial interface. All output signals are linear with the applied temperature.

All modules feature the open drain relay driver output available in MLX90313. Several types of modules are available. First types are the modules for automotive applications, which have additional ESD protection circuitry on board. These modules can have an analog voltage output (MLX90601EZABAA), or a digital PWM coded output (MLX90601EZA-DAA). The substrate is in this case a FR4 PCB with a 5 pin through-hole connector.

Alternatively there are some modules targeted for industrial or consumer applications. These modules can have also analog outputs (MLX90601KZA-BKA) or PWM outputs (MLX90601KZA-CKA and MLX90601EZA-CAA).

All three modules have a SPI interface available for full programmability.

The MLX90601KZA-BKA and MLX90601KZACKA are built on a flexible polyamide substrate, making building in the sensor very easy. The user can choose now the most suited module depending on electrical and mechanical needs.

MLX90601 Maximum Ratings

MLX90601EZA-BAA MLX90601EZA-DAA
Voltage, V_DD (over-voltage)                                           80V
Supply Voltage, V_DD (operating)                                   5.5V
Supply Current, I_DD                                                       6mA
Operating Temperature Range, TA             -40°C / 105°C
ESD Sensitivity (AEC Q100 002)                                      4kV
MLX90601KZA-CKA MLX90601KZA-BKA
Voltage, VDD (over-voltage)                                             7V
Supply Voltage, V_DD (operating)                                   5.5V
Supply Current, I_DD                                                       6mA
Operating Temperature Range, TA              -40°C / 125°C
ESD Sensitivity (AEC Q100 002)                                      1kV
MLX90601EZA-CAA
Voltage, VDD (over-voltage)                                             7V
Supply Voltage, V_DD (operating)                                    5.5V
Supply Current, I_DD 6mA
Operating Temperature Range, TA               -40°C / 105°C
ESD Sensitivity (AEC Q100 002)                                        1kV

MLX90601 Features

· Remote temperature measurement
· Fully linearized signals
· Analog voltage output, digital PWM output and SPI interface
· Factory calibrated
· Rigid PCB with automotive protection circuitry, or flex circuit board.
· EEPROM ECC
· Open drain relay driver output

MLX90601 Typical Application

· Automotive climate control
· Toasters, microwave ovens and other applications that require temperature control
· Residential, commercial climate control and occupancy detection
· Industrial temperature transducer and monitoring applications

MLX90614ESF-AAA Parameters

Technical/Catalog Information	MLX90614ESF-AAA
Vendor	Melexis Inc
Category	Sensors, Transducers
Voltage - Supply	4 V ~ 5.5 V
Package / Case	TO-39
Packaging	Tube
Output Type	PWM
Sensing Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MLX90614ESF AAA MLX90614ESFAAA
