MC9S08SH8MTJ, MC9S08SL16CTJ, MC9S08SL16CTL

Table of contents:
Info of MC9S08SH8MTJ
Info of MC9S08SL16CTJ
Info of MC9S08SL16CTL

MC9S08SH8MTJ, MC9S08SL16CTJ, MC9S08SL16CTL Selling Leads, Datasheet

MFG:Freescale Semiconductor Category:Integrated Circuits (ICs) Package Cooled:TSSOP 20 D/C:08+/09+

MC9S08SH8MTJ, MC9S08SL16CTJ, MC9S08SL16CTL Datasheet download

Five Points

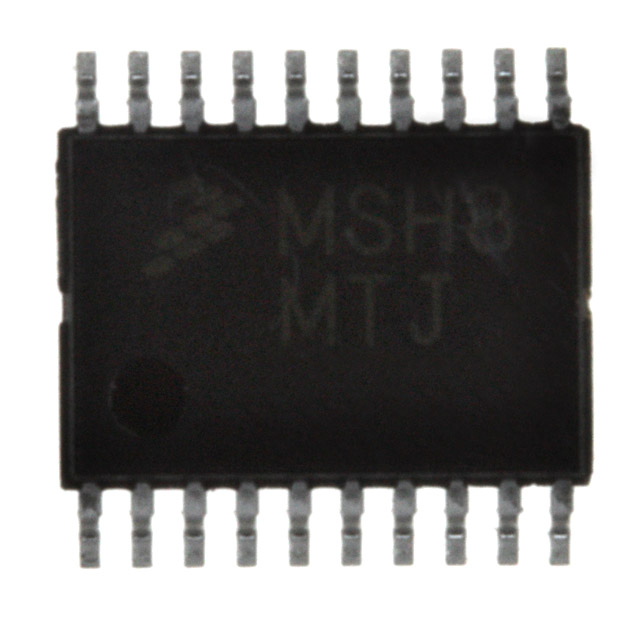

Part Number: MC9S08SH8MTJ

Category: Integrated Circuits (ICs)

MFG: Freescale Semiconductor

Package Cooled: TSSOP 20

D/C: 08+/09+

Description: MCU 16KB FLASH SLIC 28TSSOP

Price Break

1
25
100
1000

Unit Price

2.33000
1.49080
1.40990
1.33920

Extended Price

2.33
37.27
140.99
1339.20

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MC9S08SH8MTJ Parameters

Technical/Catalog Information	MC9S08SH8MTJ
Vendor	Freescale Semiconductor
Category	Integrated Circuits (ICs)
Program Memory Size	8KB (8K x 8)
RAM Size	512 x 8
Number of I /O	17
Package / Case	20-TSSOP
Speed	20MHz
Controller Series	HCS08
Oscillator Type	Internal
Packaging	Tube
Program Memory Type	FLASH
EEPROM Size	-
Core Processor	HCS08
Data Converters	A/D 12x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 125°C
Connectivity	I²C, LIN, SCI, SPI
Peripherals	LVD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	2.7 V ~ 5.5 V
Drawing Number	375; 948E-02; TJ; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MC9S08SH8MTJ MC9S08SH8MTJ

MC9S08SL16CTJ Parameters

Technical/Catalog Information	MC9S08SL16CTJ
Vendor	Freescale Semiconductor
Category	Integrated Circuits (ICs)
Program Memory Size	16KB (16K x 8)
RAM Size	512 x 8
Number of I /O	16
Package / Case	20-TSSOP
Speed	40MHz
Controller Series	HCS08
Oscillator Type	External
Packaging	Tray
Program Memory Type	FLASH
EEPROM Size	256 x 8
Core Processor	HCS08
Data Converters	A/D 12x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	I²C, LIN, SCI, SPI
Peripherals	LVD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	2.7 V ~ 5.5 V
Drawing Number	375; 948E-02; TJ; 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MC9S08SL16CTJ MC9S08SL16CTJ

MC9S08SL16CTL Parameters

Technical/Catalog Information	MC9S08SL16CTL
Vendor	Freescale Semiconductor
Category	Integrated Circuits (ICs)
Program Memory Size	16KB (16K x 8)
RAM Size	512 x 8
Number of I /O	22
Package / Case	28-TSSOP
Speed	40MHz
Controller Series	HCS08
Oscillator Type	External
Packaging	Tray
Program Memory Type	FLASH
EEPROM Size	256 x 8
Core Processor	HCS08
Data Converters	A/D 16x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	I²C, LIN, SCI, SPI
Peripherals	LVD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	2.7 V ~ 5.5 V
Drawing Number	375; 1168-02; TL; 28
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MC9S08SL16CTL MC9S08SL16CTL
