MAX991, MAX9910EXK, MAX9910EXK+T

Table of contents:
Info of MAX991
Info of MAX9910EXK
Info of MAX9910EXK+T

MAX991, MAX9910EXK, MAX9910EXK+T Selling Leads, Datasheet

MFG:Maxim Integrated Products Category:Integrated Circuits (ICs) Package Cooled:SOP-8 D/C:08+

MAX991, MAX9910EXK, MAX9910EXK+T Datasheet download

Five Points

Part Number: MAX9910EXK+T

Category: Integrated Circuits (ICs)

MFG: Maxim Integrated Products

Package Cooled: SOP-8

D/C: 08+

Description: IC OP AMP R-R I/O SC70-5

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MAX991 Parameters

MAX991 Features

120ns Propagation Delay

48µA Quiescent Supply Current

+2.5V to +5.5V Single-Supply Operation

Common-Mode Input Voltage Range Extends 250mV Beyond the Rails

Push/Pull Output Stage Sinks and Sources 8mA Current (MAX987/MAX991/MAX995)

Open-Drain Output Voltage Extends Beyond VCC (MAX988/MAX992/MAX996)

Unique Output Stage Reduces Output Switching Current, Minimizing Overall Power Consumption

100µA Supply Current at 1MHz Switching Frequency

No Phase Reversal for Overdriven Inputs

Available in Space-Saving Packages:

5-Pin SOT23 (MAX987/MAX988)

8-Pin µMAX (MAX991/MAX992)

MAX991 General Description

High-Speed, Micropower, Low-Voltage, SOT23, Rail-to-Rail I/O Comparators

MAX991 Maximum Ratings

Supply Voltage (V_CC to V_EE) ...................................................6V
IN_-, IN_+ to V_EE .......................................-0.3V to (V_CC + 0.3V)
OUT_ to V_EE
MAX987/MAX991/MAX995 .........................-0.3V to (V_CC + 0.3V)
MAX988/MAX992/MAX996.........................................-0.3V to 6V
OUT_ Short-Circuit Duration to V_EE or V_CC .......................10sec
Continuous Power Dissipation (T_A = +70°C)
5-Pin SOT23 (derate 7.10mW/°C above +70°C)............571mW
8-Pin SO (derate 5.88mW/°C above +70°C)..................471mW
8-Pin MAX (derate 4.10mW/°C above +70°C) .............330mW
14-Pin SO (derate 8.33 mW/°C above +70°C)...............667mW
Operating Temperature Range .........................-40°C to +85°C
Storage Temperature Range ...........................-65°C to +150°C
Lead Temperature (soldering, 10sec) ............................+300°C

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

MAX991 Features

120ns Propagation Delay

48µA Quiescent Supply Current

+2.5V to +5.5V Single-Supply Operation

Common-Mode Input Voltage Range Extends 250mV Beyond the Rails

Push/Pull Output Stage Sinks and Sources 8mA Current (MAX987/MAX991/MAX995)

Open-Drain Output Voltage Extends Beyond VCC (MAX988/MAX992/MAX996)

Unique Output Stage Reduces Output Switching Current, Minimizing Overall Power Consumption

100µA Supply Current at 1MHz Switching Frequency

No Phase Reversal for Overdriven Inputs

Available in Space-Saving Packages:

5-Pin SOT23 (MAX987/MAX988)

8-Pin µMAX (MAX991/MAX992)

MAX991 Typical Application

MAX991 Datasheet

MAX991 Connection Diagram

MAX9910EXK+T Parameters

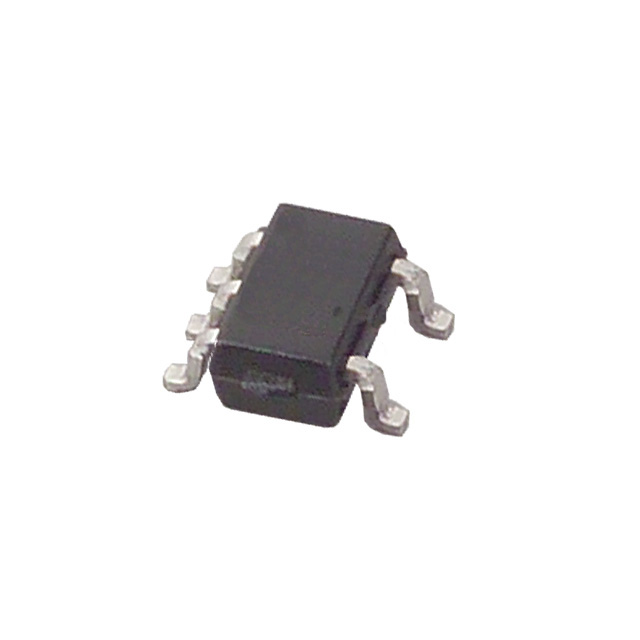

Technical/Catalog Information	MAX9910EXK+T
Vendor	Maxim Integrated Products
Category	Integrated Circuits (ICs)
Packaging	Tape & Reel (TR)
Amplifier Type	General Purpose
Number of Circuits	1 - Single
Package / Case	SC-70-5, SC-88A, SOT-323-5, SOT-353, 5-TSSOP
Slew Rate	0.1 V/s
Gain Bandwidth Product	200kHz
Current - Supply	4A
Current - Output / Channel	15mA
Voltage - Supply, Single/Dual (±)	1.8 V ~ 5.5 V
Output Type	Rail-to-Rail
-3db Bandwidth	-
Current - Input Bias	1pA
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	200V
Drawing Number	175; 21-0076; XK; 5
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MAX9910EXK+T MAX9910EXK+T
