MAX4503ESA, MAX4503EUD, MAX4503EUK-T

Table of contents:
Info of MAX4503ESA
Info of MAX4503EUD
Info of MAX4503EUK-T

MAX4503ESA, MAX4503EUD, MAX4503EUK-T Selling Leads, Datasheet

MFG:Maxim Integrated Products Category:Integrated Circuits (ICs) Package Cooled:SOP-8 D/C:SOT23/5

MAX4503ESA, MAX4503EUD, MAX4503EUK-T Datasheet download

Five Points

Part Number: MAX4503EUK-T

Category: Integrated Circuits (ICs)

MFG: Maxim Integrated Products

Package Cooled: SOP-8

D/C: SOT23/5

Description: IC SW DUAL ANLGCMOS SPST SOT23-5

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MAX4503ESA Parameters

Technical/Catalog Information	MAX4503ESA
Vendor	Maxim Integrated Products
Category	Integrated Circuits (ICs)
Type	Switch
Voltage Supply Source	Dual Supply
Voltage - Supply, Single/Dual (±)	±1 V ~ 6 V
Circuit	1 x SPST- NO
On-State Resistance	250 Ohm
Mounting Type	Surface Mount
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tube
Current - Supply	1A
Operating Temperature	-40°C ~ 85°C
Function	Switch
Drawing Number	175; 21-0041; SA; 8
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MAX4503ESA MAX4503ESA

MAX4503ESA Maximum Ratings

(Voltages Referenced to V-)
V+..............................................................................-0.3V, +13V
Voltage into Any Terminal (Note 1) ..........-0.3V to (V+ + 0.3V) or
                                                    ±10mA (whichever occurs first)
Continuous Current into Any Terminal ..............................±10mA
Peak Current, NO_ or COM_
(pulsed at 1ms,10% duty cycle)........................................±20mA
Continuous Power Dissipation (TA = +70°C)
   8-Pin Plastic DIP (derate 9.09mW/°C above +70°C) ....727mW
   8-Pin SO (derate 5.88mW/°C above +70°C).................471mW
   5-Pin SOT23-5 (derate 7.1mW/°C above +70°C) .........571mW
   8-Pin CERDIP (derate 8.00mW/°C above +70°C)..........640mW
Operating Temperature Ranges
    MAX4503C_ _/MAX4504C_ _ .............................0°C to +70°C
    MAX4503E_ _/MAX4504E_ _ ..........................-40°C to +85°C
    MAX4503MJA/MAX4504MJA ...........................-55°C to +125°C
Storage Temperature Range ............................-65°C to +150°C
Lead Temperature (soldering, 10sec) ..............................+300°C

MAX4503ESA Features

The MAX4503/MAX4504 are low-voltage, dual-supply,single-pole/single-throw (SPST), CMOS analog switch-es. The MAX4503 is normally open (NO). TheMAX4504 is normally closed (NC).

These CMOS switches can operate continuously withdual supplies between ±1.V and ±6V. Each switch can handle rail-to-rail analog signals. The off-leakage cur-rent is only 1nA at +25°C or 10nA at +85°C.

The digital input is CMOS-logic compatible when using±5V supplies. A unique logic input architecture allows this even though the parts have no ground pin.

For single-supply operation, use the MAX4501/MAX4502, which are pin-for-pin equivalents.

MAX4503ESA Typical Application

Battery-Operated Equipment

Audio and Video Signal Routing

Low-Voltage Data-Acquisition Systems

Communications Circuits

Cellular Phones

PCMCIA Cards

Modems

MAX4503ESA Connection Diagram

MAX4503EUK-T Parameters

Technical/Catalog Information	MAX4503EUK-T
Vendor	Maxim Integrated Products
Category	Integrated Circuits (ICs)
Type	Switch
Voltage Supply Source	Dual Supply
Voltage - Supply, Single/Dual (±)	±1 V ~ 6 V
Circuit	1 x SPST- NO
On-State Resistance	250 Ohm
Mounting Type	Surface Mount

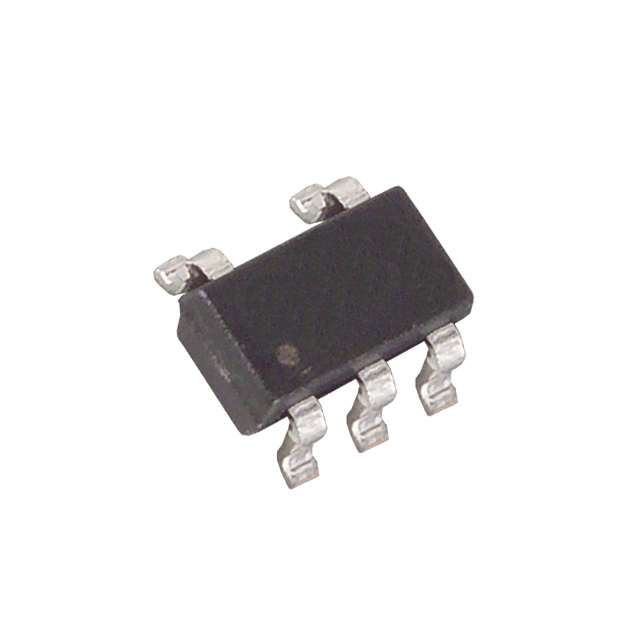

Package / Case	SOT-23-5
Packaging	Tape & Reel (TR)
Current - Supply	1A
Operating Temperature	-40°C ~ 85°C
Function	Switch
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MAX4503EUK T MAX4503EUKT
