LM399, LM3999Z, LM399AH

Table of contents:
Info of LM399
Info of LM3999Z
Info of LM399AH

LM399, LM3999Z, LM399AH Selling Leads, Datasheet

MFG:Linear Technology Category:Integrated Circuits (ICs) Package Cooled:496+ D/C:1999

LM399, LM3999Z, LM399AH Datasheet download

Five Points

Part Number: LM399AH

Category: Integrated Circuits (ICs)

MFG: Linear Technology

Package Cooled: 496+

D/C: 1999

Description: IC REFERENCE PRECISION TO-46

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

LM399 Parameters

LM399 Features

Guaranteed 0.0001%/°C temperature coefficient
Low dynamic impedance - 0.5
Initial tolerance on breakdown voltage - 2%
Sharp breakdown at 400 µA
Wide operating current - 500 µA to 10 mA
Wide supply range for temperature stabilizer
Guaranteed low noise
Low power for stabilization - 300 mW at 25°C
Long term stability - 20 ppm
Proven reliability, low-stress packaging in TO-46 integrated-circuit hermetic package, for low hysteresis after thermal cycling. 33 million hours MTBF at T_A = +25°C (T_J = +86°C)
Certified long term stability available
MIL-STD-883 compliant

LM399 General Description

Precision Reference

LM399 Maximum Ratings

Initial Accuracy (+/-) Max	2 %
Reference Voltage	6.95 V
Tempco, max (ppm/C)	5 ppm
Operating Current	0.5 mA
Output Current	10 mA
Temperature Min	0 deg C
Temperature Max	70 deg C
View Using Catalog

LM399 Features

Guaranteed 0.0001%/°C temperature coefficient
Low dynamic impedance - 0.5
Initial tolerance on breakdown voltage - 2%
Sharp breakdown at 400 µA
Wide operating current - 500 µA to 10 mA
Wide supply range for temperature stabilizer
Guaranteed low noise
Low power for stabilization - 300 mW at 25°C
Long term stability - 20 ppm
Proven reliability, low-stress packaging in TO-46 integrated-circuit hermetic package, for low hysteresis after thermal cycling. 33 million hours MTBF at T_A = +25°C (T_J = +86°C)
Certified long term stability available
MIL-STD-883 compliant

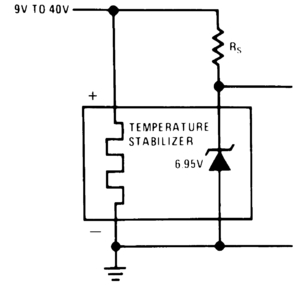

LM399 Typical Application

LM399 Datasheet

LM399 Connection Diagram

LM399AH Parameters

Technical/Catalog Information	LM399AH
Vendor	Linear Technology
Category	Integrated Circuits (ICs)
Reference Type	Shunt
Voltage - Output	6.95V
Tolerance	±5%
Temperature Coefficient	2ppm/°C
Voltage - Input	-
Number of Channels	1
Current - Cathode	500A
Current - Quiescent	-
Current - Output	10mA
Operating Temperature	0°C ~ 70°C
Package / Case	TO-46-4
Packaging	Tube
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	LM399AH LM399AH

LM399AH General Description

The LM399AH precision reference features excellent tempertature stability over a wide range of voltage,temperature,and operating current conditions.

Features of the LM399AH are:(1)guaranteed 0.5ppm/ temperature coefficient;(2)guaranteed 1.0 max. dynamic impedance;(3)guaranteed 20V RMS max.noise;(4)guaranteed inital tolerance of 2%;(5)wide operating current range.Applications of the LM399AH are:(1)precision voltage reference for multimeters;(2)calibration equipment voltage standards;(3)laboratory measurement equipment;(4)industrial monitor/control instruments;(5)high accurancy data converters.

The absolute maximum ratings of the LM399AH can be summarized as:(1):the parameter is temperature stabilizer,the rating is 40,the unit is V;(2):the parameter is reverse breakdown current,the rating is 20,the unit is mA;(3):the parameter is forward current,the rating is 1,the unit is mA;(4):the parameter is reference to substrate voltage,the symbol is V(RS),the rating is -0.1,the unit is V;(5):the parameter is operating temperature range,the rating is 0 to 70,the unit is ;(6):the parameter is storage temperature range,the rating is -65 to 150,the unit is ;(7):the parameter is lead temperature (soldering,10 sec),the rating is 300,the unit is .
