MFG:International Rectifier Category:Integrated Circuits (ICs) Package Cooled:7850 D/C:IR

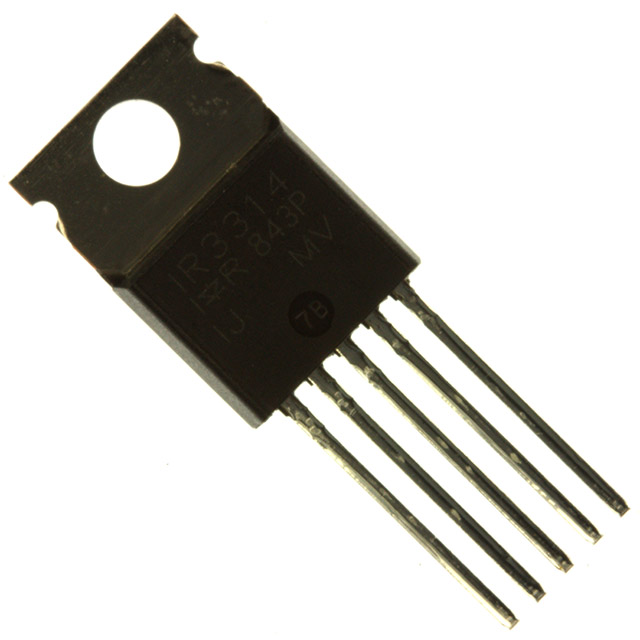

IR3314PBF, IR3315STRL, IR3316STRL Datasheet download
Category: Integrated Circuits (ICs)
MFG: International Rectifier
Package Cooled: 7850
D/C: IR
Description: IC SWITCH HI-SIDE PROG TO-220FL
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: IR3009
File Size: 710374 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IR3009
File Size: 710374 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: IR3009
File Size: 710374 KB
Manufacturer: IRF [International Rectifier]
Download : Click here to Download
| Technical/Catalog Information | IR3314PBF |
| Vendor | International Rectifier |
| Category | Integrated Circuits (ICs) |
| Package / Case | TO-220-5 (Straight Leads) |
| Mounting Type | Through Hole |
| Type | High Side |
| Voltage - Supply | 6 V ~ 32 V |
| On-State Resistance | 9 mOhm |
| Current - Output / Channel | 18A |
| Current - Peak Output | 100A |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Number of Outputs | 1 |
| Operating Temperature | -40°C ~ 150°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | IR3314PBF IR3314PBF |
The IR3314(S)PbF is a fully protected 4 terminals high side switch. The input signal is referenced to Vcc. When the input voltage Vcc - Vin is higher than the specified threshold, the output power Mosfet is turned on. When the Vcc - Vin is lower than the specified Vil threshold, the output Mosfet is turned off. A current proportional to the power Mosfet current is sourced to the Ifb pin. Over current shutdown occurs when Vst-Vin > 4.5V. The current shutdown threshold is adjusted by selecting the proper RIfb. Either over current and over temperature latches off the switch. The device is reset by pulling the input pin high. Other integrated protections (ESD, reverse battery, active clamp) make the switch very rugged in automotive environment.
| Symbol | Parameter | Min | Max. | Units |
| Vcc-Vin | Maximum Vcc voltage | -16 | 37 | V |
| Vcc-Vin cont. | Maximum continuous Vcc voltage | -16 | 32 | |
| Vcc-Vfb | Maximum Ifb voltage | -16 | 33 | |
| Vcc-Vout | Maximum output voltage | -0.3 | 37 | |
| Ids cont. | Maximum body diode continuous current Rth=60/W (1) | - | 2.8 | A |
| Ids pulsed | Maximum body diode pulsed current (1) | - | 100 | |
| Pd | Maximum power dissipation Rth=60/W | - | 2 | W |
| ESD1 | Electrostatic discharge voltage (Human body) C=100pF, R=1500 | - | 4 | kV |
| ESD2 | Electrostatic discharge voltage (Machine Model) C=200pF,R=0 | - | 0.5 | |
| Tj max. | Max. storage & operating temperature junction temperature | -40 | 150 | |
| Min Rfb | Minimum on the resistor on Ifb pin | 0.3 | - | k |
| Ifb max. | Max. Ifb current | -50 | 50 | mA |
