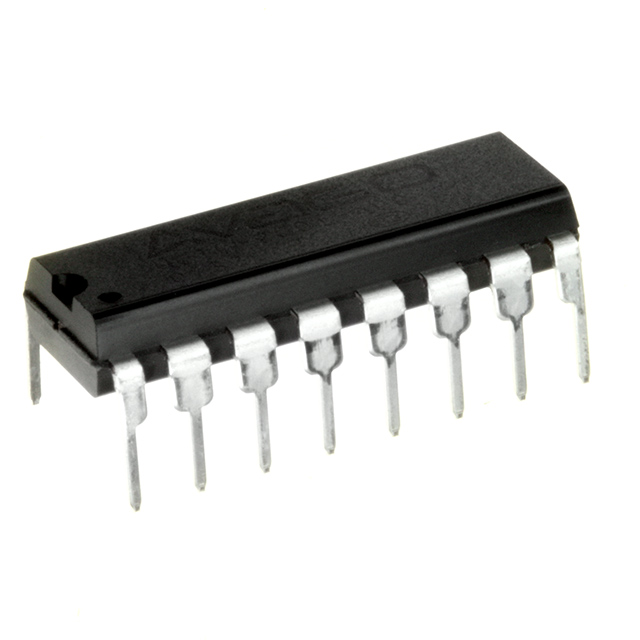

HCTL-2000, HCTL-2001-A00, HCTL2016 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Avago Technologies US Inc.
Package Cooled: 16/DIP
D/C: 02+
Description: IC DECODER/COUNTER 12BIT 16-DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: HCTL-2000
File Size: 343133 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HCT04
File Size: 34512 KB
Manufacturer: SLS [System Logic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: HCTL2016
File Size: 327533 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
The HCTL-2000, 2016, 2020 are CMOS ICs that perform the quadrature decoder, counter, and bus interface function. The HCTL-20XX family is designed to improve system performance
| Parameter |
Symbol |
Limits |
Units |
| DC Supply Voltage |
VDD |
-0.3 to +5.5 |
V |
| Input Voltage |
VIN |
-0.3 to VDD +0.3 |
V |
| Storage Temperature |
TS |
-40 to +125 |
°C |
| Operating Temperature |
TA[1] |
-40 to +85 |
°C |
| Technical/Catalog Information | HCTL-2001-A00 |
| Vendor | Avago Technologies US Inc. |
| Category | Integrated Circuits (ICs) |
| Applications | Encoder to Microprocessor |
| Interface | 8-Bit Tristate |
| Voltage - Supply | 4.5 V ~ 5.5 V |
| Package / Case | 16-DIP |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | HCTL 2001 A00 HCTL2001A00 516 1880 5 ND 51618805ND 516-1880-5 |
The HCTL-2xx1(7)-A00/PLC is CMOS ICs that performs the quadrature decoder, counter, and bus interface function. The HCTL-2xx1(7)-A00/PLC is designed to improve system performance in digital closed loop motion control systems and digital data input systems.
It does this by shifting time intensive quadrature decoder functions to a cost effective hardware solution.
The HCTL-2xx1(7)-A00/PLC consists of a quadrature decoder logic, a binary up/down state counter, and an 8-bit bus interface. The use of Schmitt-triggered CMOS inputs and input noise filters allows reliable operation in noisy environments. The HCTL-2001-A00 contains 12-bit counter and HCTL-2017-A00/PLC or HCTL-2021- A00/PLC contains 16-bit counter and provides TLL/ CMOS compatible tri-state output buffers. Operation is specified for a temperature range from 40 to +85°C at clock frequencies up to 14MHz.
The HCTL-2021-A00/PLC provides quadrature decoder output signals and casca
| Parameter | Symbol | Limits | Units |
| DC Supply Voltage | VDD | -0.3 to +6.0 | V |
| Input Voltage | VIN | -0.3 to (VDD +0.3) | V |
| Storage Temperature | TS | -55 to +150 | C |
| Operating Temperature [1] | TA | -40 to +85 | C |
