GP1A73, GP1A73AJ000F, GP1A74

Table of contents:
Info of GP1A73
Info of GP1A73AJ000F
Info of GP1A74

GP1A73, GP1A73AJ000F, GP1A74 Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Sensors, Transducers Package Cooled:www.dayue-hk.com D/C:08+ ROHS

GP1A73, GP1A73AJ000F, GP1A74 Datasheet download

Five Points

Part Number: GP1A73AJ000F

Category: Sensors, Transducers

MFG: Sharp Microelectronics

Package Cooled: www.dayue-hk.com

D/C: 08+ ROHS

Description: SENSR OPTO REFLECTIVE SNAPIN PCB

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

GP1A73AJ000F Parameters

Technical/Catalog Information	GP1A73AJ000F
Vendor	Sharp Microelectronics
Category	Sensors, Transducers
Sensing Distance	-
Sensing Method	-
Sensing Object	-
Sensing Light	-
Mounting Type	Connector, Snap-In
Current - Output	*
Current - Output	*
Voltage - Supply	4.5 V ~ 5.5 V
Package / Case	PCB Mount
Packaging	Bulk
Features	Compact Model
Output Configuration	-
Current - Supply	16.5mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	GP1A73AJ000F GP1A73AJ000F 425 1953 5 ND 42519535ND 425-1953-5

GP1A73AJ000F General Description

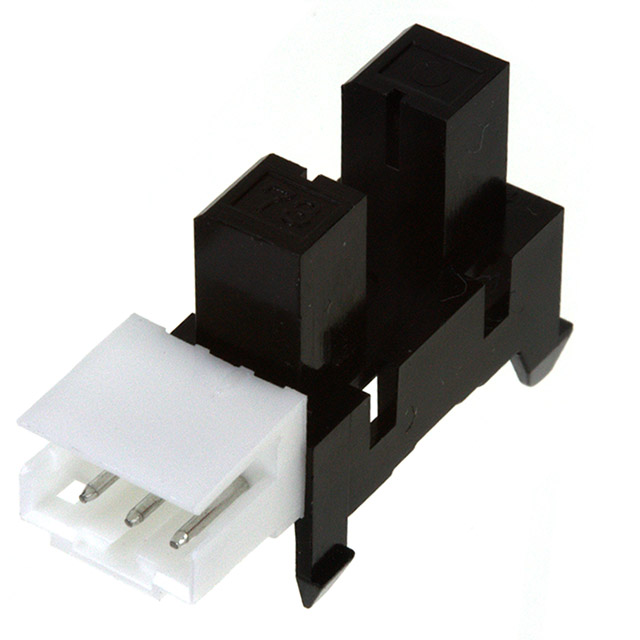

GP1A73AJ000F is a standard, OPIC output, transmissive photointerrupter with opposing emitter and detector in a case, providing non-contact sensing. For this family of devices, the emitter and detector are inserted in a case, and a 3-pin connector is included to allow remotemount or off-board designs.

GP1A73AJ000F Maximum Ratings

Parameter	Symbol	Rating	Unit
Parameter	V_CC	−0.5 to +7	V
^*1 Output voltage	V_OUT	−0.5 to +7	V
^*2Output current	I_OL	8	mA
^*3Operating temperature	T_opr	−20 to +75
^*3 Storage temperature	T_stg	−30 to +85

*1 Collector-emitter voltage of output transistor.
*2 Collector current of output transistor, refer to Fig.1.
*3 The connector should be plugged in/out at normal temperature.

GP1A73AJ000F Features

1. Transmissive with OPIC output
2. Highlights :
• Special position hooks compatible with 3 different plate thicknesses (1.0, 1.2, 1.6mm)
• Hinged snap insertion
3. Key Parameters :
• Gap Width : 5mm
• Slit Width (detector side): 0.5mm
• Package : 17×12.8×8mm (without connector and hooks)
• Connector : Tyco Electronics AMP K.K. (PN : 292133-3) or SUMIKO TEC CO., LTD.
(PN : GH4A003P000ZA)
• Output Type : High when the object is present with Pullup Resistor.
4. Lead free and RoHS directive compliant

GP1A73AJ000F Typical Application

1. General purpose detection of object presence or motion.
2. Example : PPC, FAX, Printer
