MFG:Diodes Inc Category:Discrete Semiconductor Products Package Cooled:GBU-4 D/C:07+
GBU408G, GBU410, GBU410G Datasheet download
Category: Discrete Semiconductor Products
MFG: Diodes Inc

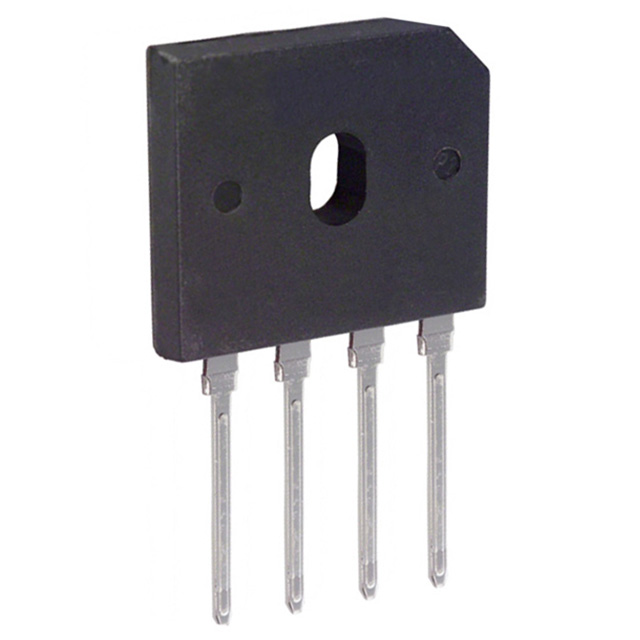

Package Cooled: GBU-4
D/C: 07+
Description: RECT BRIDGE GPP 1000V 4A GBU
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: GBU10005
File Size: 55180 KB
Manufacturer: DIODES [Diodes Incorporated]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GBU410
File Size: 55420 KB
Manufacturer: DIODES [Diodes Incorporated]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: GBU10005
File Size: 55180 KB
Manufacturer: DIODES [Diodes Incorporated]
Download : Click here to Download
| Technical/Catalog Information | GBU410 |
| Vendor | Diodes Inc |
| Category | Discrete Semiconductor Products |
| Diode Type | Single Phase |
| Package / Case | GBU |
| Packaging | Tube |
| Reverse Recovery Time (trr) | - |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Current - DC Forward (If) | 4A |
| Voltage - Peak Reverse (Max) | 1000V |
| Mounting Type | Through Hole |
| Lead Free Status | Lead Free Compliant by Exemption |
| RoHS Status | RoHS Compliant |
| Other Names | GBU410 GBU410 GBU410DI ND GBU410DIND GBU410DI |
| Characteristic |
Symbol |
GBU 4005 |
GBU 4001 |
GBU 4002 |
GBU 4004 |
GBU 4006 |
GBU 4008 |
GBU 410 |
Unit |
| Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
50 |
100 |
200 |
400 |
600 |
800 |
1000 |
V |
| RMS Reverse Voltage |
V R(RMS) |
35 |
70 |
140 |
280 |
420 |
560 |
700 |
V |
| Average Rectified Output Current (Note 1) @ TC = 100 |
IO |
4.0 |
A | ||||||
| Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) |
IFSM |
150 |
A | ||||||
| Forward Voltage (per element) @ IF = 5.0A |
VFM |
1.0 |
V | ||||||
| Peak Reverse Current @ TC = 25 at Rated DC Blocking Voltage @ TC = 125 |
IR |
5.0 50 |
A | ||||||
| I2t Rating for Fusing (Note 2) |
I2t |
93 |
A2s | ||||||
| Typical Junction Capacitance per Element (Note 3) |
CJ |
80 |
pF | ||||||
| Typical Thermal Resistance Junction to Case (Note 1) |
RJC |
2.2 |
/W | ||||||
| Operating and Storage Temperature Range |
Tj, TSTG |
-55 to +150 |
|||||||
