FSDM100, FSDM1265RBWDTU, FSDM311

Table of contents:
Info of FSDM100
Info of FSDM1265RBWDTU
Info of FSDM311

FSDM100, FSDM1265RBWDTU, FSDM311 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:DIP8 D/C:07+PB

FSDM100, FSDM1265RBWDTU, FSDM311 Datasheet download

Five Points

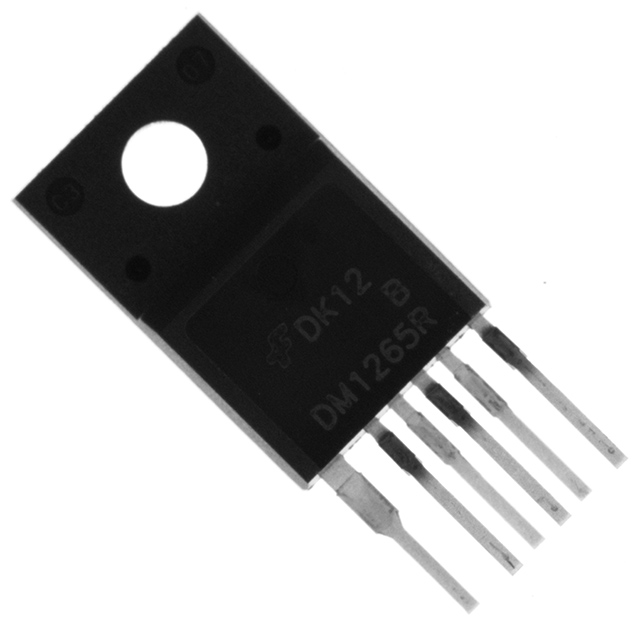

Part Number: FSDM1265RBWDTU

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: DIP8

D/C: 07+PB

Description: IC SWIT PWM GREEN OVP HV 8DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FSDM100 Parameters

FSDM311 Features

Internal Avalanche Rugged SenseFET
Precision Fixed Operating Frequency (67KHz)
Advanced Burst-Mode operation Consumes under 0.2W at 265Vac and no load
Internal Start-up Switch and Soft Start
Under Voltage Lock Out (UVLO) with Hysteresis
Pulse by Pulse Current Limit
Over Load Protection (OLP)
Over Voltage Protection (OVP)
Internal Thermal Shutdown Function (TSD)
Secondary Side Regulation
Auto-Restart Mode

FSDM100 General Description

SMPS Power Switch for PC, TV and Monitor Aux Power, (Green)

FSDM100 Features

Internal Avalanche Rugged SenseFET
Precision Fixed Operating Frequency (67KHz)
Advanced Burst-Mode operation Consumes under 0.2W at 265Vac and no load
Internal Start-up Switch and Soft Start
Under Voltage Lock Out (UVLO) with Hysteresis
Pulse by Pulse Current Limit
Over Load Protection (OLP)
Over Voltage Protection (OVP)
Internal Thermal Shutdown Function (TSD)
Secondary Side Regulation
Auto-Restart Mode

FSDM100 Typical Application

FSDM311 Datasheet

FSDM1265RBWDTU Parameters

Technical/Catalog Information	FSDM1265RBWDTU
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Packaging	Tube
Package / Case	TO-220F-6
Power (Watts)	110W
Voltage - Input	9 ~ 20 V
Voltage - Output	650V
Frequency Range	60 ~ 72kHz
Operating Temperature	-25°C ~ 85°C
Output Isolation	Isolated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSDM1265RBWDTU FSDM1265RBWDTU

FSDM311 Parameters

Technical/Catalog Information	FSDM311
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Packaging	-
Package / Case	8-DIP
Power (Watts)	13W
Voltage - Input	8 ~ 20 V
Voltage - Output	650V
Frequency Range	61 ~ 73kHz
Operating Temperature	25°C ~ 85°C
Output Isolation	Isolated
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FSDM311 FSDM311

FSDM311 General Description

SMPS Power Switch for PC, TV and Monitor Aux Power, (Green)

FSDM311 Maximum Ratings

Parameter	Symbol	Value	Unit
Maximum Vstr Pin Voltage	VSTR,MAX	650	V
Maximum Drain Pin Voltage	VDRAIN,MAX	650	V
Drain-Gate Voltage (RGS=1MΩ)	VDGR	650	V
Gate-Source (GND) Voltage	IDM	±20	V
Drain Current Pulsed⁽¹⁾	ID	1.5	ADC
Continuous Drain Current (Tc=25°C)	ID	0.32	ADC
Continuous Drain Current (Tc=100°C)	EAS	10	ADC
Single Pulsed Avalanche Energy ⁽²⁾	VCC,MAX	20	mJ
Maximum Supply Voltage	VFB	−0.3 to Vstop	V
Total Power Dissipation	PD	1.25	V
Operating Junction Temperature.	TJ	+150	W
Operating Ambient Temperature.	TA	-25 to +85	°C
Storage Temperature Range.	TSTG	-55 to +150	°C

FSDM311 Features

Internal Avalanche Rugged SenseFET
Precision Fixed Operating Frequency (67KHz)
Advanced Burst-Mode operation Consumes under 0.2W at 265Vac and no load
Internal Start-up Switch and Soft Start
Under Voltage Lock Out (UVLO) with Hysteresis
Pulse by Pulse Current Limit
Over Load Protection (OLP)
Over Voltage Protection (OVP)
Internal Thermal Shutdown Function (TSD)
Secondary Side Regulation
Auto-Restart Mode

FSDM311 Typical Application

FSDM311 Datasheet

FSDM311 Connection Diagram
