MFG:Fairchild Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:TSSOP D/C:10+
FMS6203MTC1406, FMS6203MTC1406X, FMS6243 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor (VA)
Package Cooled: TSSOP
D/C: 10+

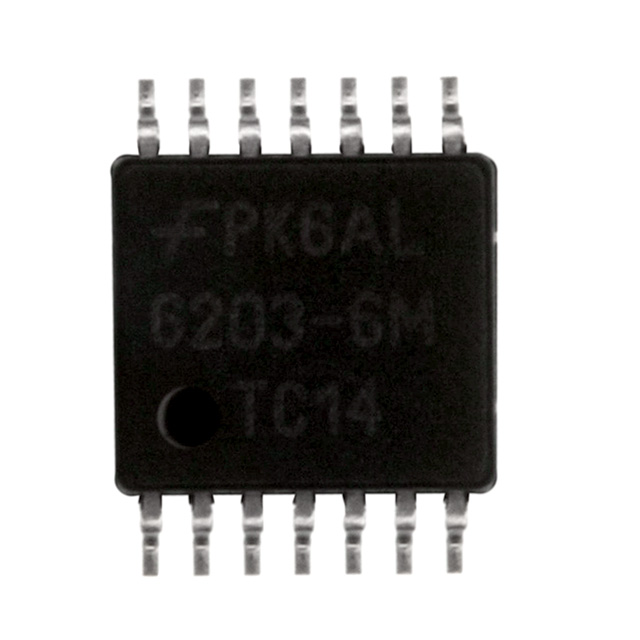

Description: IC VIDEO DRIVER 3CH 6DB 14-TSSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FMS-109
File Size: 222098 KB
Manufacturer: MACOM [Tyco Electronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FMS-109
File Size: 222098 KB
Manufacturer: MACOM [Tyco Electronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FMS-109
File Size: 222098 KB
Manufacturer: MACOM [Tyco Electronics]
Download : Click here to Download
| Technical/Catalog Information | FMS6203MTC1406 |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP |
| Type | Driver |
| Packaging | Tube |
| Applications | Set-Top Boxes, Video Players, Recorders |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FMS6203MTC1406 FMS6203MTC1406 |
| Technical/Catalog Information | FMS6203MTC1406X |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP |
| Type | Driver |
| Packaging | Cut Tape (CT) |
| Applications | Set-Top Boxes, Video Players, Recorders |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FMS6203MTC1406X FMS6203MTC1406X FMS6203MTC1406XCT ND FMS6203MTC1406XCTND FMS6203MTC1406XCT |
The FMS6243 Low-Cost Video Filter (LCVF) is intendedto replace passive LC filters and drivers with a low-costintegrated device. Three fourth-order filters provideimproved image quality compared to typical second- orthird-order passive solutions.
The FMS6243 can be directly driven by a DC-coupledDAC output or an AC-coupled signal. Internal diodeclamps and bias circuitry can be used if AC-coupledinputs are required (see the Applications section fordetails).
Delay for each channel can be independently controlledwith an external capacitor.
The outputs can drive AC- or DC-coupled single (150W)or dual (75W) loads. DC coupling the outputs removesthe need for output coupling capacitors. The input DClevels are offset approximately +280mV at the output(see the Applications section for details).
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FMS6243MTC14 | Not recommended for new designs | RoHS Compliant | N/A | TSSOP | 14 | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FMS6243 | |
| FMS6243MTC14X | Full Production | RoHS Compliant | $0.61 | TSSOP | 14 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FMS6243 Line 3: MTC |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FMS6243 is available. Click here for more information . |
