MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:2008 D/C:09+
FMA9AT148, FMB075, FMB100 Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: 2008
D/C: 09+
Description: TRANSISTOR NPN 45V 500MA SSOT-6
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FMA1
File Size: 61540 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FMB075
File Size: 18139 KB
Manufacturer: ASI [Advanced Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FMB100
File Size: 45132 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download

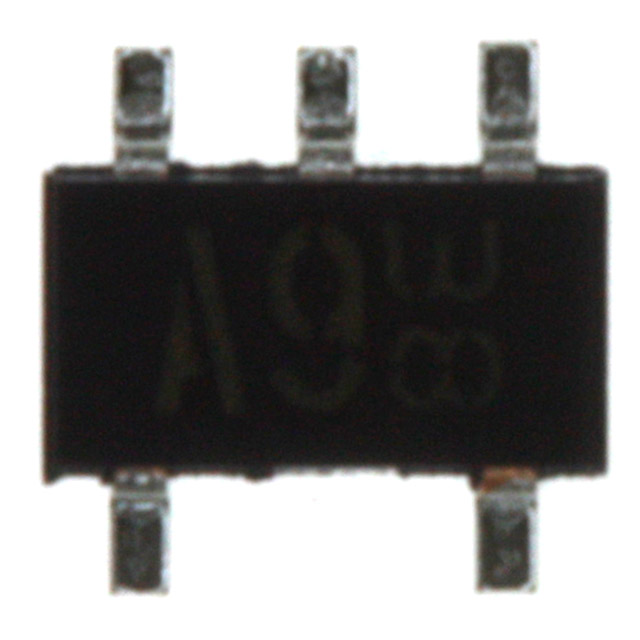

| Technical/Catalog Information | FMA9AT148 |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | 2 PNP - Pre-Biased (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 300mW |
| Resistor - Base (R1) (Ohms) | 10K |
| Resistor - Emitter Base (R2) (Ohms) | 10K |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500A, 10mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-74-5, SOT-753 |
| Packaging | Tape & Reel (TR) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FMA9AT148 FMA9AT148 FMA9AT148TR ND FMA9AT148TRND FMA9AT148TR |
| Technical/Catalog Information | FMB100 |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 45V |
| Current - Collector (Ic) (Max) | 500mA |
| Power - Max | 700mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 1V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 1mA, 10mA |
| Frequency - Transition | 300MHz |
| Current - Collector Cutoff (Max) | 50nA |
| Mounting Type | Surface Mount |
| Package / Case | SuperSOT-6 |
| Packaging | Tape & Reel (TR) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FMB100 FMB100 |
| Symbol | Parameter | Value | Units |
| VCEO | Collector-Emitter Voltage | 45 | V |
| VCBO | Collector-Base Voltage | 75 | V |
| VEBO | Emitter-Base Voltage | 6.0 | V |
| IC | Collector Current -continuous | 500 | mA |
| TJ,TSTG | Operating and Storage Junction Temperature Range | -55 to +150 | °C |
