FIN1101K8X, FIN1101MX, FIN1102

Table of contents:
Info of FIN1101K8X
Info of FIN1101MX
Info of FIN1102

FIN1101K8X, FIN1101MX, FIN1102 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:N/A D/C:09+

FIN1101K8X, FIN1101MX, FIN1102 Datasheet download

Five Points

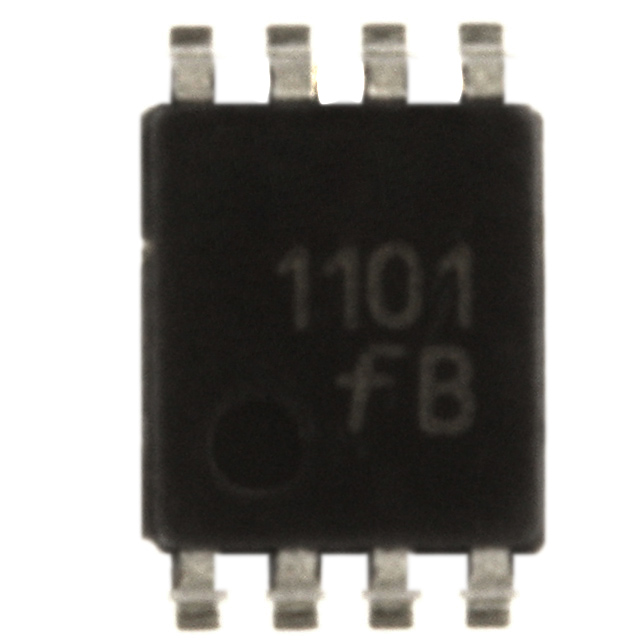

Part Number: FIN1101K8X

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: N/A

D/C: 09+

Description: IC REPEATER SGL PORT LVDS 8SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FIN1101K8X Parameters

Technical/Catalog Information	FIN1101K8X
Vendor	Fairchild Semiconductor (VA)
Category	Integrated Circuits (ICs)
Tx/Rx Type	LVDS
Delay Time	1.75ns
Type	Repeater
Capacitance - Input	2.2pF
Current - Supply	13.5mA
Voltage - Supply	3 V ~ 3.6 V
Package / Case	US8, 8-VSSOP
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FIN1101K8X FIN1101K8X FIN1101K8XCT ND FIN1101K8XCTND FIN1101K8XCT

FIN1101MX Parameters

Technical/Catalog Information	FIN1101MX
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Tx/Rx Type	LVDS
Delay Time	1.75ns
Type	Repeater
Capacitance - Input	2.2pF
Current - Supply	13.5mA
Voltage - Supply	3 V ~ 3.6 V
Package / Case	8-SOIC
Packaging	Tape & Reel (TR)
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FIN1101MX FIN1101MX

FIN1102 General Description

This 2 port repeater is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The FIN1102 accepts and outputs LVDS levels with a typical differential output swing of 330 mV which provides low EMI at ultra low power dissipation even at high frequencies. The FIN1102 provides a V_BB reference for AC coupling on the inputs. In addition the FIN1102 can also directly accept LVPECL, HSTL, and SSTL-2 for translation to LVDS.

FIN1102 Maximum Ratings

Supply Voltage (V_CC) ...........................................−0.5V to +4.6V
LVDS DC Input Voltage (V_IN) ...............................−0.5V to +4.6V
LVDS DC Output Voltage (V_OUT) ..........................−0.5V to +4.6V
Driver Short Circuit Current (I_OSD) .................Continuous 10 mA
Storage Temperature Range (T_STG) ..............−65°C to +150°C
Max Junction Temperature (T_J) .........................................150°C
Lead Temperature (T_L)
(Soldering, 10 seconds) ...................................................260°C
ESD (Human Body Model) ..................................................7000V
ESD (Machine Model) ...........................................................300V

FIN1102 Features

• Greater than 800 Mbps full differential path
• 3.3V power supply operation
• 3.5 ps maximum random jitter and 135 ps maximum deterministic jitter
• Wide rail-to-rail common mode range
• LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly
• Ultra low power consumption
• 20 ps typical channel-to-channel skew
• Power off protection
• > 7 kV HBM ESD Protection
• Meets or exceeds the TIA/EIA-644-A LVDS standard
• 14-lead TSSOP package saves space
• Open circuit fail safe protection
• VBB reference output

FIN1102 Connection Diagram
