FDP8440, FDP8441, FDP8442

Table of contents:
Info of FDP8440
Info of FDP8441
Info of FDP8442

FDP8440, FDP8441, FDP8442 Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Discrete Semiconductor Products Package Cooled:TO-220 D/C:2010+

FDP8440, FDP8441, FDP8442 Datasheet download

Five Points

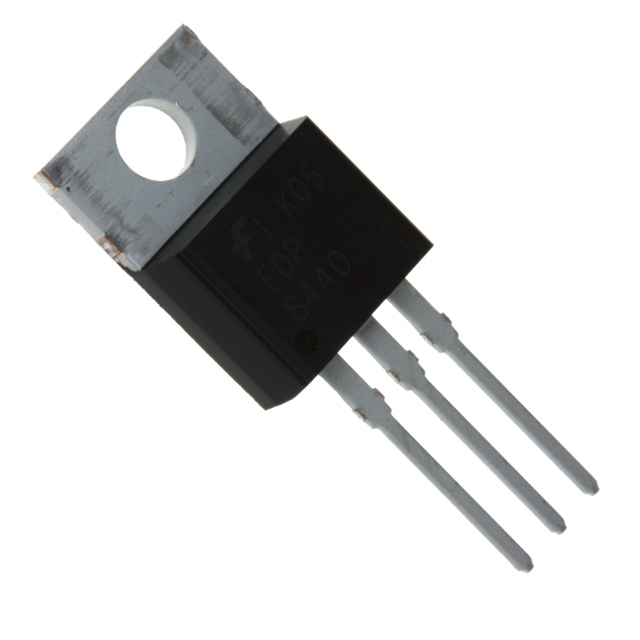

Part Number: FDP8440

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor

Package Cooled: TO-220

D/C: 2010+

Description: MOSFET N-CH 40V TO-220AB

Price Break

1
10
100
250
500
1000
2500

Unit Price

4.28000
3.42000
2.66000
2.52700
2.47000
2.42250
2.39400

Extended Price

4.28
34.20
266.00
631.75
1235.00
2422.50
5985.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FDP8440 Parameters

Technical/Catalog Information	FDP8440
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25° C	100A
Rds On (Max) @ Id, Vgs	2.2 mOhm @ 80A, 10V
Input Capacitance (Ciss) @ Vds	24740pF @ 25V
Power - Max	306W
Packaging	Tube
Gate Charge (Qg) @ Vgs	450nC @ 10V
Package / Case	TO-220
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDP8440 FDP8440

FDP8440 Maximum Ratings

Product	Product status	Eco Status	Pricing*	Package type	Leads	Packing method	Package Drawing	Package Marking Convention**
FDP8440	Full Production	RoHS Compliant	$4.30	TO-220	3	RAIL	TBD	Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &E&3 (3-Digit Date Code) Line 2: FDP Line 3: 8440

* Fairchild 1,000 piece Budgetary Pricing

** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples

Package marking information for product FDP8440 is available. Click here for more information .

FDP8441 Parameters

Technical/Catalog Information	FDP8441
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25° C	80A
Rds On (Max) @ Id, Vgs	2.7 mOhm @ 80A, 10V
Input Capacitance (Ciss) @ Vds	15000pF @ 25V
Power - Max	300W
Packaging	Tube
Gate Charge (Qg) @ Vgs	280nC @ 10V
Package / Case	TO-220AB
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDP8441 FDP8441

FDP8442 Parameters

Technical/Catalog Information	FDP8442
Vendor	Fairchild Semiconductor
Category	Discrete Semiconductor Products
Mounting Type	Through Hole
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25° C	80A
Rds On (Max) @ Id, Vgs	3.1 mOhm @ 80A, 10V
Input Capacitance (Ciss) @ Vds	12200pF @ 25V
Power - Max	254W
Packaging	Tube
Gate Charge (Qg) @ Vgs	235nC @ 10V
Package / Case	TO-220AB
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FDP8442 FDP8442
