These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe,DMOS technology.
This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficient switched mode power supplies and active power factor correction.
FDP46N30 Maximum Ratings
Symbol
Parameter
FDP46N30
Unit
VDSS
Drain-Source Voltage
300
V
ID
Drain Current - Continuous (TC= 25) - Continuous (TC= 100)
46 27.6
A A
IDM
Drain Current Pulsed (Note 1)
184
A
VGSS
Gate-Source voltage
±30
V
EAS
Single Pulsed Avalanche Energy (Note 2)
1205
mJ
IAR
I Avalanche Current (Note 1)
46
A
EAR
Repetitive Avalanche Energy (Note 1)
41.7
mJ
dv/dt
Peak Diode Recovery dv/dt (Note 3)
4.5
V/ns
PD
Power Dissipation (TC= 25) - Derate above 25
417 3.3
W W/
TJ,TSTG
Operating and Storage Temperature Range
-55to+150
TL
Maximum Lead Temperature for Soldering Purpose,1/8" from Case for 5 Seconds
These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe,DMOS technology.
This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficient switched mode power supplies and active power factor correction.
FDP51N25 Maximum Ratings
Symbol
Parameter
FDP51N25
Unit
VDSS
Drain-Source Voltage
250
V
ID
Drain Current - Continuous (TC= 25) - Continuous (TC= 100)
51 30
A A
IDM
Drain Current Pulsed (Note 1)
204
A
VGSS
Gate-Source voltage
±30
V
EAS
Single Pulsed Avalanche Energy (Note 2)
1111
mJ
IAR
I Avalanche Current (Note 1)
51
A
EAR
Repetitive Avalanche Energy (Note 1)
32
mJ
dv/dt
Peak Diode Recovery dv/dt (Note 3)
4.5
V/ns
PD
Power Dissipation (TC= 25) - Derate above 25
320 2.56
W W/
TJ,TSTG
Operating and Storage Temperature Range
-55to+150
TL
Maximum Lead Temperature for Soldering Purpose,1/8" from Case for 5 Seconds
300

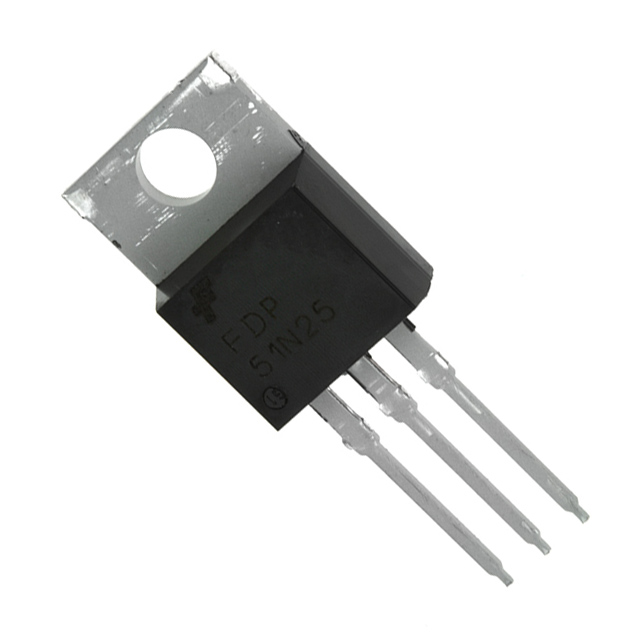

FDP51N25 Features
* 51A, 250V, R DS(on) = 0.060 W @VGS = 10 V * Low gate charge ( typical 55 nC) * Low Crss ( typical 63 pF) * Fast switching * 100% avalanche tested * Improved dv/dt capability
