BH7824FVM, BH7824FVM-FTR, BH7826FVM

Table of contents:
Info of BH7824FVM
Info of BH7824FVM-FTR
Info of BH7826FVM

BH7824FVM, BH7824FVM-FTR, BH7826FVM Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Integrated Circuits (ICs) Package Cooled:SSOP D/C:04+

BH7824FVM, BH7824FVM-FTR, BH7826FVM Datasheet download

Five Points

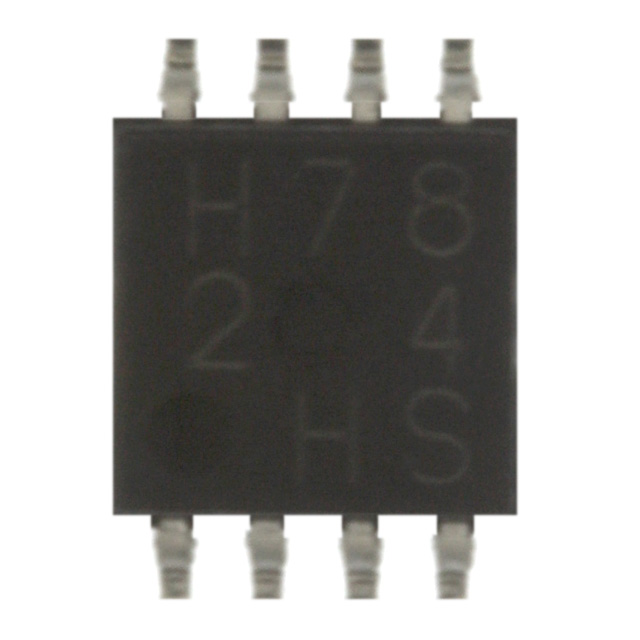

Part Number: BH7824FVM-FTR

Category: Integrated Circuits (ICs)

MFG: Rohm Semiconductor(VA)

Package Cooled: SSOP

D/C: 04+

Description: IC AMP AUDIO .5W MONO AB 8MSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

BH7824FVM-FTR Parameters

Technical/Catalog Information	BH7824FVM-FTR
Vendor	Rohm Semiconductor(VA)
Category	Integrated Circuits (ICs)
Package / Case	8-MSOP, Micro8?, 8-uMAX, 8-uSOP,
Type	Class AB
Output Type	1-Channel (Mono)
Voltage - Supply	1.8 V ~ 5.5 V
Packaging	Digi-Reel?
Features	Depop, Shutdown, Thermal Protection
Max Output Power x Channels @ Load	500mW x 1 @ 8 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BH7824FVM FTR BH7824FVMFTR BH7824FVM FDKR ND BH7824FVMFDKRND BH7824FVM-FDKR

BH7826FVM General Description

BH7826FVM is an audio driver IC developed for mobile · audio products such as mobile phones. Low voltage operation, and low power consumption can be realized. Differential input is available for this IC.

BH7826FVM Maximum Ratings

Parameter	Symbol	Limits	Unit

Appliedvoltage	VCC MAX.	6.0	V
Power dissipation	Pd	470^*1	mW
Operating temperature	Topr	30 ~ + 85	°C
Storage temperature	Tstg	55 ~ + 125	°C

BH7826FVM Features

1) BTL monaural power amplifier.
2) High power 500mW / 8 / BTL output.
3) Wide supply voltage range.
4) For active / shutdown mode.
5) Built-in anti-pop circuit / thermal shutdown circuit

BH7826FVM Typical Application

Mobile phones, PDA, Notebook PC, DSC, DVC
