MFG:Rohm Semiconductor Category:Integrated Circuits (ICs) Package Cooled:09+ D/C:TO-
BD956F, BD9701FPE2, BD9701T Datasheet download
Category: Integrated Circuits (ICs)
MFG: Rohm Semiconductor
Package Cooled: 09+
D/C: TO-
Description: IC REG SW 1CHAN 1.5A TO220FP-5
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BD900
File Size: 446207 KB
Manufacturer: POINN [Power Innovations Limited]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BD900
File Size: 446207 KB
Manufacturer: POINN [Power Innovations Limited]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BD9701T
File Size: 324718 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
|
SYMBOL |
PARAMETER |
VALUE |
UNIT | |
|
VCBO |
Collector-Base Voltage |
BD950F |
-60 |
V |
|
BD952F |
-80 | |||
|
BD954F |
-100 | |||
|
BD956F |
-120 | |||
|
VCEO |
Collector-Emitter Voltage |
BD950F |
-60 |
V |
|
BD952F |
-80 | |||
|
BD954F |
-100 | |||
|
BD956F |
-120 | |||
|
VEBO |
Emitter-Base Voltage |
-5 |
V | |
|
IC |
Collector Current-Continuous |
-5 |
A | |
|
ICM |
Collector Current-Peak |
-8 |
A | |
|
PC |
Collector Power Dissipation @TC=25 |
22 |
W | |
|
Tj |
Junction Temperature |
150 |
||
|
Tstg |
Storage Temperature Range |
-65~150 |
||

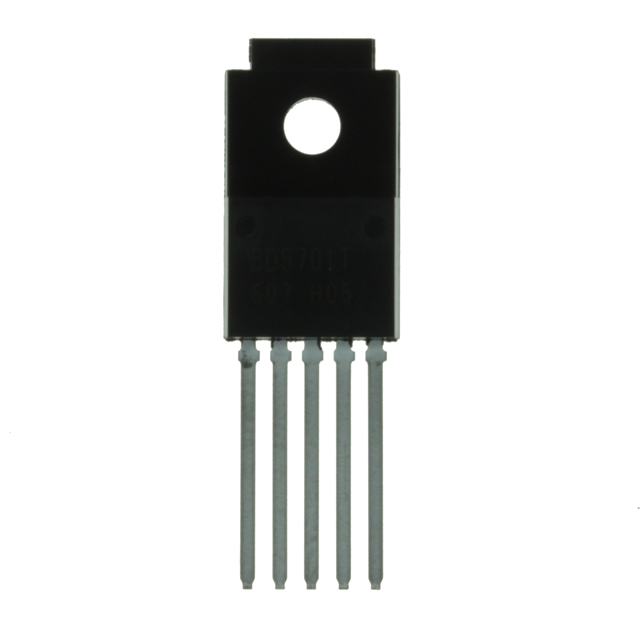

| Technical/Catalog Information | BD9701T |
| Vendor | Rohm Semiconductor |
| Category | Integrated Circuits (ICs) |
| Type | Step-Down (Buck) |
| Number of Outputs | 1 |
| Voltage - Input | 8 ~ 36 V |
| Voltage - Output | 1 ~ 32 V |
| Current - Output | 1.5A |
| Power - Output | 2W |
| Package / Case | TO-220-5 Fullpak (Straight Leads) |
| Packaging | Bulk |
| Internal Switch(s) | Yes |
| Synchronous | No |
| Rds (On) | - |
| Operating Temperature | -40°C ~ 85°C |
| Frequency - Switching | 100kHz |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BD9701T BD9701T |
