AS1705-T, AS1706, AS1706T

Table of contents:
Info of AS1705-T
Info of AS1706
Info of AS1706T

AS1705-T, AS1706, AS1706T Selling Leads, Datasheet

MFG:AS Package Cooled:MSOP D/C:06+

AS1705-T, AS1706, AS1706T Datasheet download

Five Points

Part Number: AS1705-T

MFG: AS

Package Cooled: MSOP

D/C: 06+

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AS1706 General Description

The AS1701 and AS1706 are 1.6W bridged audio power amplifiers that provide excellent circuit reliability, providing a very low-cost solution by eliminating external components when used with 2.7 to 5.5V-powered circuits.

The devices have superb total harmonic distortion (THD) at high-power output and excellent power supply rejection with 4- and 8-loads.

Integrated over-temperature and over-current protection circuitry switch the devices off in case of an output short-circuit. A digital input allows the devices to automatically switch into shutdown mode. Click- and popsuppression circuitry reduces audible clicks and pops during power-up and shutdown. The gain (AV) of the devices is controlled using external resistors.

The AS1701/AS1706 are available in an 8-pin MSOP package.

AS1706 Maximum Ratings

Parameter	Min	Max	Unit	Comments
VDD to GND	-0.3	+7	V
Any Other Pin to GND	-0.3	VDD + 0.3	V
Input Current (Latchup Immunity)	-100	100	mA	JEDEC 78
Continuous Power Dissipation		362	mW	TAMB = 70ºC, Derate 4.5mW/ºC Above +70ºC
Electro-Static Discharge (ESD)	-40	1	kV	HBM MIL-Std883E 3015.7 Methods
Electro-Static Discharge (ESD)	-65	+85	ºC
Storage Temperature Range		+150	ºC
Soldering Conditions		+260	ºC	The reflow peak soldering temperature (body temperature) specified is in accordance with IPC/JEDEC J-STD- 020C "Moisture/Reflow Sensitivity Classification for Non-Hermetic Solid State Surface Mount Devices".

AS1706 Features

`2.7 to 5.5V (VDD) Single-Supply Operation
`Very High PSRR: Greater Than 65dB @ 217Hz
`THD+Noise: 1.6W into 4 at 1%
`No Output Coupling Capacitors Required
`External Gain Configuration Capability
`Low-Power Shutdown Mode: 10nA
`Click and Pop Suppression
`Over-Temperature and Over-Current Protection
`Operating Temperature Range: -40 to +85°C
`8-pin MSOP Package

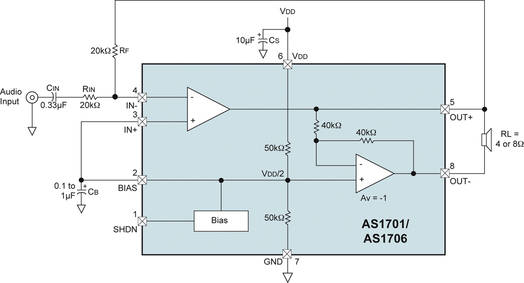

AS1706 Connection Diagram
