ADT6504SRJZN015RL7, ADT660, ADT70

Table of contents:
Info of ADT6504SRJZN015RL7
Info of ADT660
Info of ADT70

ADT6504SRJZN015RL7, ADT660, ADT70 Selling Leads, Datasheet

MFG:Analog Devices Inc (VA) Category:Integrated Circuits (ICs) Package Cooled:QFP44 D/C:912

ADT6504SRJZN015RL7, ADT660, ADT70 Datasheet download

Five Points

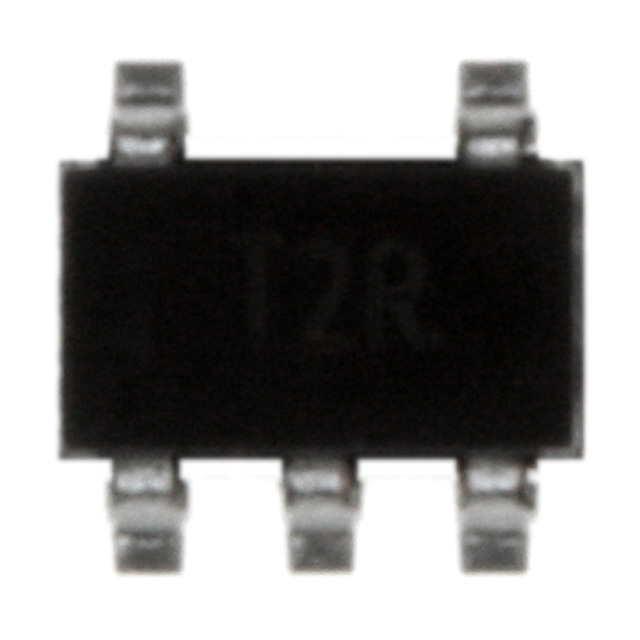

Part Number: ADT6504SRJZN015RL7

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc (VA)

Package Cooled: QFP44

D/C: 912

Description: IC TEMP SENSOR MICROPWR SOT23-5

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADT6504SRJZN015RL7 Parameters

Technical/Catalog Information	ADT6504SRJZN015RL7
Vendor	Analog Devices Inc (VA)
Category	Integrated Circuits (ICs)
Voltage - Supply	2.7 V ~ 5.5 V
Package / Case	SOT-23-5
Packaging	Digi-Reel?
Output Type	*
Sensing Temperature	-55°C ~ 125°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADT6504SRJZN015RL7 ADT6504SRJZN015RL7 ADT6504SRJZN015RL7DKR ND ADT6504SRJZN015RL7DKRND ADT6504SRJZN015RL7DKR

ADT70 General Description

The ADT70 provides excitation and signal conditioning for resistance-temperature devices (RTDs). It is ideally suited for 1 kW Platinum RTDs (PRTDs), allowing a very wide range of temperature measurement. It can also easily interface to 100 W PRTDs. Using a remote, low cost thin-film PRTD, the ADT70 can measure temperature in the range of 50°C to +500°C. With high performance platinum elements, the temperature change can be extended to 1000°C. Accuracy of the ADT70 and PRTD system over a 200°C to +1000°C temperature range heavily depends on the quality of the PRTD. Typically the ADT70 will introduce an error of only ±1°C over the transducer's temperature range, and the error may be trimmed to zero at a single calibration point.

The ADT70 consists of two matched 1 mA (nominal) current sources for transducer and reference resistor excitation, a precision rail-to-rail output instrumentation amplifier, a 2.5 V reference\ and an uncommitted rail-to-rail output op amp. The ADT70 includes a shutdown function for battery powered equipment, which reduces the quiescent current from 4 mA to less than 10ÊmA. The ADT70 operates from either single +5 V or ±5 V supplies. Gain or full-scale range for the PRTD and ADT70 system is set by a precision external resistor connected to the instrumentation amplifier. The uncommitted op amp may be used for scaling the internal voltage reference, providing a "PRTD open" signal or "over-temperature" warning, a heater switching signal, or other external conditioning determined by the user.

The ADT70 is specified for operation from 240°C to 1125°C and is available in 20-lead DIP and SO packages.

ADT70 Maximum Ratings

Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 V
Output Short-Circuit Duration . . . . . . . . . . . . . . . . . Indefinite
Storage Temperature Range
N, R Package . . . . . . . . . . . . . . . . . . . . . . 265°C to 1150°C
Operating Temperature Range . . . . . . . . . . 240°C to 1125°C
Junction Temperature Range
N, R Package . . . . . . . . . . . . . . . . . . . . . . 265°C to 1125°C
Lead Temperature (Soldering, 60 sec) . . . . . . . . . . . . 1300°C

ADT70 Features

·PRTD Temperature Measurement Range
·Typical IC Measurement Error 618C
·Includes Two Matched Current Sources
·Rail-to-Rail Output Instrumentation Amp
·Uncommitted, Rail-to-Rail Output Op Amp
·On-Board 12.5 V Reference
·Temperature Coefficient 625 ppm/8C
·15 V or 65 V Operation
·Supply Current 4 mA Max
·10 mA Max in Shutdown

ADT70 Typical Application

·Temperature Controllers
·Portable Instrumentation
·Temperature Acquisition Cards

ADT70 Connection Diagram
