ADS8401EVM, ADS8401I, ADS8401IBPFBR

Table of contents:
Info of ADS8401EVM
Info of ADS8401I
Info of ADS8401IBPFBR

ADS8401EVM, ADS8401I, ADS8401IBPFBR Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:SOP D/C:04+05+

ADS8401EVM, ADS8401I, ADS8401IBPFBR Datasheet download

Five Points

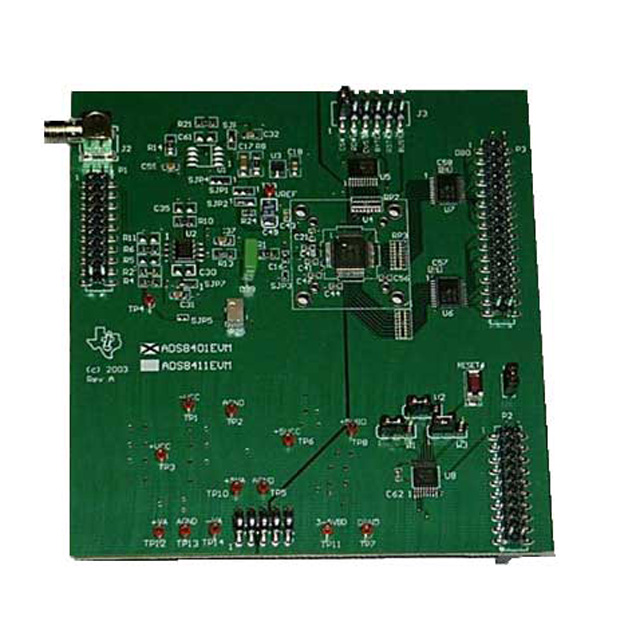

Part Number: ADS8401EVM

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: SOP

D/C: 04+05+

Description: IC ADC 16BIT 1.25MSPS 48-TQFP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADS8401EVM Parameters

Technical/Catalog Information	ADS8401EVM
Vendor	Texas Instruments
Category	Programmers, Development Systems
Number of ADC's	1
Inputs per ADC	1 Differential
Input Range	0 ~ 4.1 V
Data Interface	Parallel
Number of Bits	16
Sampling Rate (Per Second)	1.25M
Voltage Supply Source	Analog and Digital
Operating Temperature	-40°C ~ 85°C
Supplied Contents	Board
Utilized IC / Part	ADS8401
Power (Typ) @ Conditions	155mW @ 1.25MSPS
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADS8401EVM ADS8401EVM 296 18382 ND 29618382ND 296-18382

ADS8401IBPFBR Parameters

Technical/Catalog Information	ADS8401IBPFBR
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	16
Package / Case	48-TQFP
Data Interface	Parallel
Packaging	Tape & Reel (TR)
Sampling Rate (Per Second)	1.25M
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Analog and Digital
Number of Inputs and Type	2 Single-Ended, Unipolar; 1 Differential, Unipolar
Number of Converters	1
Power Dissipation (Max)	155mW
Drawing Number	296; 4073176; PFB; 48
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADS8401IBPFBR ADS8401IBPFBR

ADS8401IBPFBR General Description

The ADS8401 is a 16-bit, 1.25 MHz A/D converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8401 offers a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles. The ADS8401 has a unipolar single-ended input. It is available in a 48-lead TQFP package and is characterized over the industrial 40°C to 85°C temperature range.

ADS8401IBPFBR Maximum Ratings

UNIT
Voltage	+IN to AGND	0.4 V to +VA + 0.1 V
	IN to AGND	0.4 V to +VA + 0.1 V
Voltage range	+VA to AGND	0.3 V to 7 V
	+VBD to BDGND	0.3 V to 7 V
	+VA to +VBD	0.3 V to 2.55 V
Digital input voltage to BDGND		0.3 V to +VBD + 0.3 V
Digital output voltage to BDGND		0.3 V to +VBD + 0.3 V
TA Operating free-air temperature range		40°C to 85°C
Tstg Storage temperature range		65°C to 150°C
Junction temperature (TJ max)		150°C
TQFP package	Power dissipation	(TJMax - TA)/qJA
	qJA thermal impedance	86°C/W
Lead temperature, soldering	Vapor phase (60 sec)	215°C
	Infrared (15 sec)	220°C

ADS8401IBPFBR Features

1.25-MHz Sample Rate
16-Bit NMC Ensured Over Temperature
Zero Latency
Unipolar Single-Ended Input Range: 0 V to Vref
Onboard Reference
Onboard Reference Buffer
High-Speed Parallel Interface
Power Dissipation: 155 mW at 1.25 MHz Typ
Wide Digital Supply
8-/16-Bit Bus Transfer 48-Pin TQFP Package

ADS8401IBPFBR Typical Application

DWDM
Instrumentation
High-Speed, High-Resolution, Zero Latency Data Acquisition Systems
Transducer Interface
Medical Instruments
Communication
