ADS8381IRGZR, ADS8382, ADS8382EVM Datasheet download
Category: Programmers, Development Systems
MFG: Texas Instruments
Package Cooled: n/a
D/C: 09+

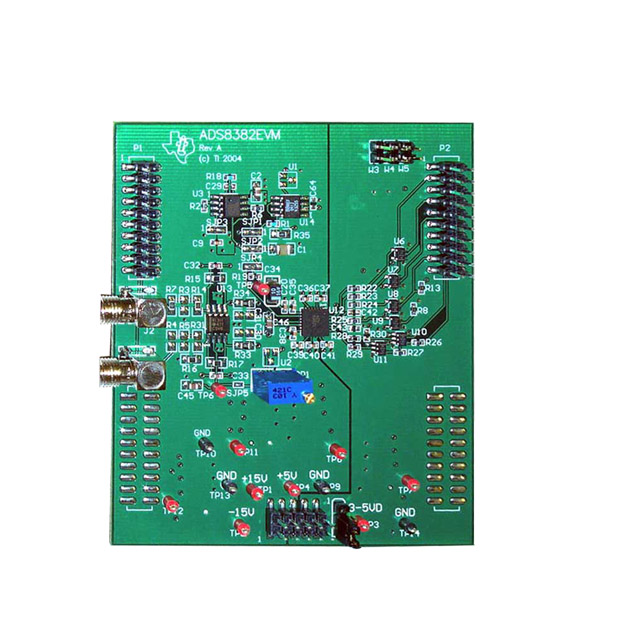

Description: EVALUATION MODULE FOR ADS8382
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ADS1100
File Size: 189503 KB
Manufacturer: BURR-BROWN [Burr-Brown Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ADS8382
File Size: 1212436 KB
Manufacturer: TI
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ADS1100
File Size: 189503 KB
Manufacturer: BURR-BROWN [Burr-Brown Corporation]
Download : Click here to Download
The ADS8382 is a high performance 18-bit, 600-kHz A/D converter with fully differential, pseudo-bipolar input. The device includes an 18-bit capacitor-based SAR A/D converter with inherent sample and hold.The ADS8382 offers a high-speed CMOS serial interface with clock speeds up to 40 MHz.
The ADS8382 is available in a 28 lead 6 * 6 QFN package and is characterized over the industrial 40°C to 85°C temperature range.
| Voltage | +IN to AGND |
0.3 V to +VA + 0.3 V |
| IN to AGND |
0.3 V to +VA + 0.3 V | |
| +VA to AGND |
0.3 V to 7 V | |
| +VBD to BDGND |
0.3 V to 7 V | |
| Digital input voltage to BDGND |
0.3 V to +VBD + 0.3 V | |
| Digital input voltage to +VA |
+0.3 V | |
| Operating free-air temperature range,TA |
40°C to 85°C | |
| Storage temperature range,Tstg |
65°C to 150°C | |
| Junction temperature (TJ max) |
150°C | |
| QFN package | Power dissipation |
(TJ max TA)/JA |
| JA thermal impedance |
86°C/W | |
| Lead temperature, soldering | Vapor phase (60 sec) |
215°C |
| Infrared (15 sec) |
220°C | |
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
| Technical/Catalog Information | ADS8382EVM |
| Vendor | Texas Instruments |
| Category | Programmers, Development Systems |
| Number of ADC's | 1 |
| Inputs per ADC | 1 Differential |
| Input Range | 0 ~ 4.2 V |
| Data Interface | Serial |
| Number of Bits | 18 |
| Sampling Rate (Per Second) | 600k |
| Voltage Supply Source | Analog and Digital |
| Operating Temperature | -40°C ~ 85°C |
| Supplied Contents | Board |
| Utilized IC / Part | ADS8382 |
| Power (Typ) @ Conditions | 115mW @ 600kSPS |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ADS8382EVM ADS8382EVM 296 17514 ND 29617514ND 296-17514 |
