ADS8343E, ADS8343EB, ADS8344

Table of contents:
Info of ADS8343E
Info of ADS8343EB
Info of ADS8344

ADS8343E, ADS8343EB, ADS8344 Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:16SSOP D/C:08.09+

ADS8343E, ADS8343EB, ADS8344 Datasheet download

Five Points

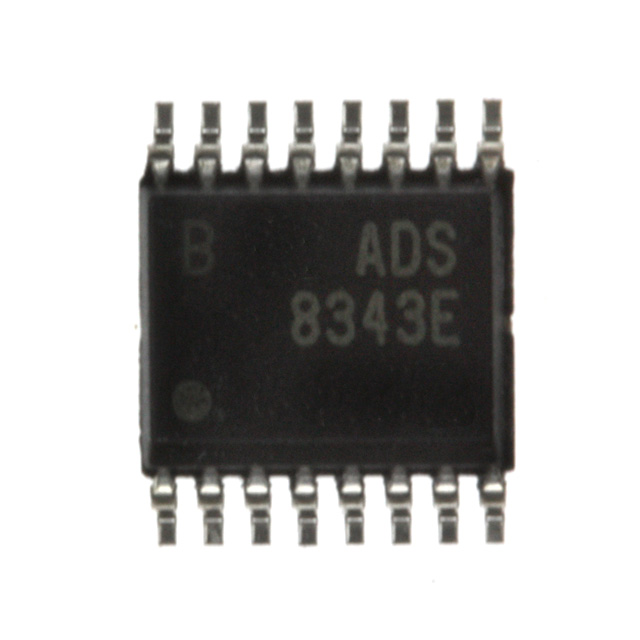

Part Number: ADS8343EB

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: 16SSOP

D/C: 08.09+

Description: IC A/D CONV 4-CH SERIAL 16-QSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADS8343E Parameters

Technical/Catalog Information	ADS8343E
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	16
Package / Case	16-QSOP (SSOP)
Data Interface	Serial
Packaging	Tube
Sampling Rate (Per Second)	100k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Single
Number of Inputs and Type	4 Single-Ended, Bipolar; 2 Differential, Bipolar
Number of Converters	1
Power Dissipation (Max)	10mW
Drawing Number	296; 4073301-2; DBQ; 16
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADS8343E ADS8343E

ADS8343E General Description

16-Bit, 8-Channel Serial Output Sampling Analog-to-Digital Converter

ADS8343E Features

PIN FOR PIN WITH ADS7844
SINGLE SUPPLY: 2.7V to 5V
8-CHANNEL SINGLE-ENDED OR 4-CHANNEL DIFFERENTIAL INPUT
UP TO 100kHz CONVERSION RATE
84dB SINAD
SERIAL INTERFACE
QSOP-20 AND SSOP-20 PACKAGES
APPLICATIONS
- DATA ACQUISITION
- TEST AND MEASUREMENT EQUIPMENT
- INDUSTRIAL PROCESS CONTROL
- PERSONAL DIGITAL ASSISTANTS
- BATTERY-POWERED SYSTEMS

ADS8343E Typical Application

ADS8344 Datasheet

ADS8343EB Parameters

Technical/Catalog Information	ADS8343EB
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Bits	16
Package / Case	16-QSOP
Data Interface	Serial
Packaging	Tube
Sampling Rate (Per Second)	100k
Operating Temperature	-40°C ~ 85°C
Voltage Supply Source	Single
Number of Inputs and Type	4 Single-Ended, Bipolar; 2 Differential, Bipolar
Number of Converters	1
Power Dissipation (Max)	10mW
Drawing Number	296; 4073301-2; DBQ; 16
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADS8343EB ADS8343EB

ADS8344 Parameters

ADS8344 Features

PIN FOR PIN WITH ADS7844
SINGLE SUPPLY: 2.7V to 5V
8-CHANNEL SINGLE-ENDED OR 4-CHANNEL DIFFERENTIAL INPUT
UP TO 100kHz CONVERSION RATE
84dB SINAD
SERIAL INTERFACE
QSOP-20 AND SSOP-20 PACKAGES
APPLICATIONS
- DATA ACQUISITION
- TEST AND MEASUREMENT EQUIPMENT
- INDUSTRIAL PROCESS CONTROL
- PERSONAL DIGITAL ASSISTANTS
- BATTERY-POWERED SYSTEMS

ADS8344 General Description

16-Bit, 8-Channel Serial Output Sampling Analog-to-Digital Converter

ADS8344 Maximum Ratings

+V_CC to GND ...................................................................... 0.3V to +6V
Analog Inputs to GND ............................................0.3V to +V_CC + 0.3V
Digital Inputs to GND .......................................................... 0.3V to +6V
Power Dissipation ......................................................................... 250mW
Maximum Junction Temperature .................................................. +150°C
Operating Temperature Range ........................................ 40°C to +85°C
Storage Temperature Range .......................................65°C to +150°C
Lead Temperature (soldering, 10s) .............................................. +300°C

NOTE: (1) Stresses above those listed under "Absolute Maximum Ratings"may cause permanent damage to the device. Exposure to absolute maximum onditions for extended periods may affect device reliability.

ADS8344 Features

PIN FOR PIN WITH ADS7844
SINGLE SUPPLY: 2.7V to 5V
8-CHANNEL SINGLE-ENDED OR 4-CHANNEL DIFFERENTIAL INPUT
UP TO 100kHz CONVERSION RATE
84dB SINAD
SERIAL INTERFACE
QSOP-20 AND SSOP-20 PACKAGES
APPLICATIONS
- DATA ACQUISITION
- TEST AND MEASUREMENT EQUIPMENT
- INDUSTRIAL PROCESS CONTROL
- PERSONAL DIGITAL ASSISTANTS
- BATTERY-POWERED SYSTEMS

ADS8344 Typical Application

ADS8344 Datasheet

ADS8344 Connection Diagram
