ADM1172-2AUJZ-RL7, ADM1175, ADM1175-1ARMZ-R7

Table of contents:
Info of ADM1172-2AUJZ-RL7
Info of ADM1175
Info of ADM1175-1ARMZ-R7

ADM1172-2AUJZ-RL7, ADM1175, ADM1175-1ARMZ-R7 Selling Leads, Datasheet

MFG:Analog Devices Inc Category:Integrated Circuits (ICs) Package Cooled:UJ D/C:2010+

ADM1172-2AUJZ-RL7, ADM1175, ADM1175-1ARMZ-R7 Datasheet download

Five Points

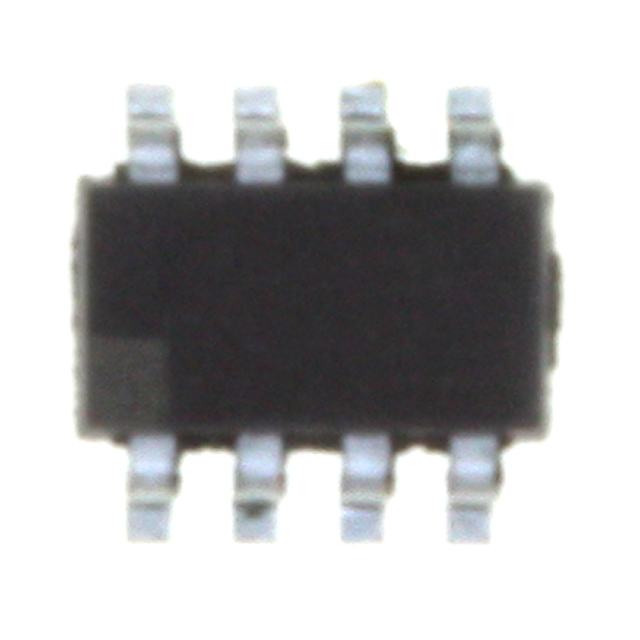

Part Number: ADM1172-2AUJZ-RL7

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc

Package Cooled: UJ

D/C: 2010+

Description: IC CTRLR HOTSWAP 16.5V 10-MSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADM1172-2AUJZ-RL7 Parameters

Technical/Catalog Information	ADM1172-2AUJZ-RL7
Vendor	Analog Devices Inc (VA)
Category	Integrated Circuits (ICs)
Applications	General Purpose
Type	Hot-Swap Controller
Package / Case	TSOT-23-8, TSOT-8
Packaging	Cut Tape (CT)
Current Limit	-
Internal Switch(s)	No
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	2.7 V ~ 16.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADM1172 2AUJZ RL7 ADM11722AUJZRL7 ADM1172 2AUJZ RL7CT ND ADM11722AUJZRL7CTND ADM1172-2AUJZ-RL7CT

ADM1175 General Description

The ADM1175 is an integrated hot swap controller and current sense amplifier that offers digital current and voltage monitoring via an on-chip, 12-bit analog-to-digital converter (ADC), communicated

ADM1175 Maximum Ratings

Other Inputs	CONV Pin
Package	10-Lead MSOP
UV & OV Detection	ON pin (UV),ONB pin (OV)

Digital V & I Readback	I2C Interface,w/ 4 Addreses
Operating Range(V)	3.15 to 16.5

ADM1175 Features

·Allows safe board insertion and removal from a live backplane
·Controls supply voltages from 3.15 V to 16.5 V
·Precision current sense amplifier
·Precision voltage input
·12-bit ADC for current and voltage readback
·Charge pumped gate drive for external N-channel FET
·Adjustable analog current limit with circuit breaker
·±3% accurate hot swap current limit level
·Fast response limits peak fault current
·Automatic retry or latch-off on current fault
·Programmable hot swap timing via TIMER pin
·Active-high and active-low ON/ONB pin options
·Convert start pin (CONV)
·I²C^® fast mode-compliant interface (400 kHz maximum)
·10-lead MSOP

ADM1175 Typical Application

·Power monitoring/power budgeting
·Central office equipment
·Telecommunication and data communication equipment
·PCs/servers

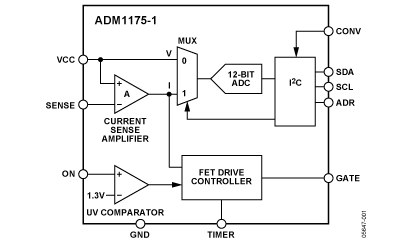

ADM1175 Connection Diagram

ADM1175-1ARMZ-R7 Parameters

Technical/Catalog Information	ADM1175-1ARMZ-R7
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Applications	General Purpose
Type	Hot-Swap Controller
Package / Case	10-MSOP, Micro10?, 10-uMAX, 10-uSOP
Packaging	Tape & Reel (TR)
Current Limit	-
Internal Switch(s)	No
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	3.15 V ~ 16.5 V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADM1175 1ARMZ R7 ADM11751ARMZR7 ADM1175 1ARMZ R7TR ND ADM11751ARMZR7TRND ADM1175-1ARMZ-R7TR
