AD9762ARU, AD9762ARURL7, AD9762ARUZ

Table of contents:
Info of AD9762ARU
Info of AD9762ARURL7
Info of AD9762ARUZ

AD9762ARU, AD9762ARURL7, AD9762ARUZ Selling Leads, Datasheet

MFG:Analog Devices Inc Category:Integrated Circuits (ICs) Package Cooled:TSSOP-28 D/C:N/A

AD9762ARU, AD9762ARURL7, AD9762ARUZ Datasheet download

Five Points

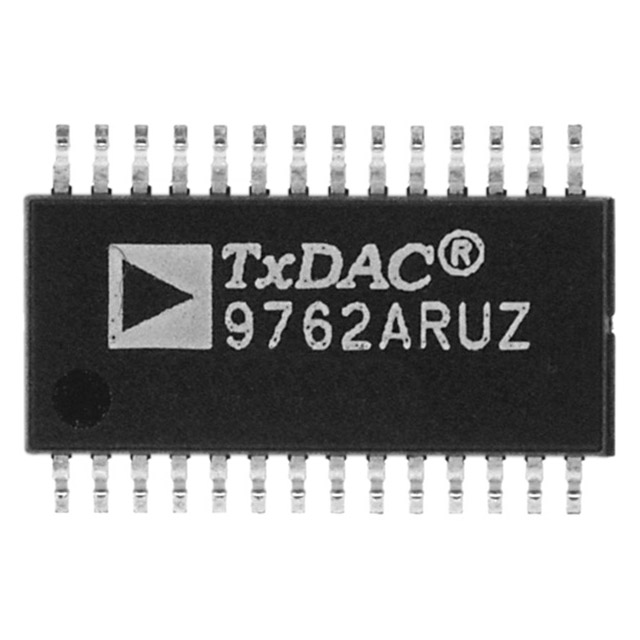

Part Number: AD9762ARUZ

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc

Package Cooled: TSSOP-28

D/C: N/A

Description: IC DAC 12BIT 125MSPS 28-TSSOP

Price Break

Unit Price

11.98500

Extended Price

599.25

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AD9762ARU Parameters

Technical/Catalog Information	AD9762ARU
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Data Interface	Parallel
Number of Bits	12
Operating Temperature	-40°C ~ 85°C
Package / Case	28-TSSOP
Packaging	Tube
Voltage Supply Source	Analog and Digital
Settling Time	35ns
Drawing Number	*
RoHS Status	RoHS Non-Compliant
Other Names	AD9762ARU AD9762ARU

AD9762ARU General Description

The AD9762 is the 12-bit resolution member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs). The TxDAC family which consists of pin compatible 8-, 10-, 12-, and 14-bit DACs is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package and pinout, thus providing an upward or downward component selection path based on performance, resolution and cost. The AD9762 offers exceptional ac and dc performance while supporting update rates up to 125 MSPS.

The AD9762's flexible single-supply operating range of 2.7 V to 5.5 V and low power dissipation are well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 45 mW without a significant degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 25 mW.

The AD9762 is manufactured on an advanced CMOS process. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious componentsand enhance dynamic performance. Edge-triggered input latches and a 1.2 V temperature compensated bandgap reference have been integrated to provide a complete monolithic DAC solution. Flexible supply options support +3 V and +5 V
CMOS logic families.

The AD9762 is a current-output DAC with a nominal full-scale output current of 20 mA and > 100 k output impedance.

AD9762ARU Maximum Ratings

Parameter	With Respect to	Min	Max	Units
AVDD	ACOM	0.3	+6.5	V
DVDD	DCOM	0.3	+6.5	V
ACOM	DCOM	0.3	+0.3	V
AVDD	DVDD	6.5	+6.5	V
CLOCK, SLEEP	DCOM	0.3	DVDD+0.3	V
Digital Inputs	DCOM	0.3	DVDD+0.3	V
IOUTA, IOUTB	ACOM	1.0	AVDD+0.3	V
ICOMP	ACOM	0.3	AVDD+0.3	V
REFIO, FSADJ	ACOM	0.3	AVDD+0.3	V
REFLO	ACOM	0.3	+0.3	V
Junction Temperature			+150	°C
Storage Temperature		65	+150	°C
Lead Temperature (10 sec)			+300	°C

AD9762ARU Features

Member of Pin-Compatible TxDAC Product Family
125 MSPS Update Rate
12-Bit Resolution
Excellent Spurious Free Dynamic Range Performance
SFDR to Nyquist @ 5 MHz Output: 70 dBc
Differential Current Outputs: 2 mA to 20 mA
Power Dissipation: 175 mW @ 5 V to 45 mW @ 3 V
Power-Down Mode: 25 mW @ 5 V
On-Chip 1.20 V Reference
Single +5 V or +3 V Supply Operation
Package: 28-Lead SOIC and TSSOP
Edge-Triggered Latches

AD9762ARU Typical Application

Communication Transmit Channel:
Basestations (Single/Multichannel Applications)
ADSL/HFC Modems
Direct Digital Synthesis (DDS)
Instrumentation

AD9762ARURL7 Parameters

Technical/Catalog Information	AD9762ARURL7
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Data Interface	Parallel
Number of Bits	12
Operating Temperature	-40°C ~ 85°C
Package / Case	28-TSSOP
Packaging	Tape & Reel (TR)
Voltage Supply Source	Analog and Digital
Settling Time	35ns
Drawing Number	*
RoHS Status	RoHS Non-Compliant
Other Names	AD9762ARURL7 AD9762ARURL7

AD9762ARUZ Parameters

Technical/Catalog Information	AD9762ARUZ
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Data Interface	Parallel
Number of Bits	12
Operating Temperature	-40°C ~ 85°C
Package / Case	28-TSSOP
Packaging	Tube
Voltage Supply Source	Analog and Digital
Settling Time	35ns
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AD9762ARUZ AD9762ARUZ
