AD1987JCPZ, AD1987JCPZ-RL, AD1988A

Table of contents:
Info of AD1987JCPZ
Info of AD1987JCPZ-RL
Info of AD1988A

AD1987JCPZ, AD1987JCPZ-RL, AD1988A Selling Leads, Datasheet

MFG:Analog Devices Inc Category:Integrated Circuits (ICs) Package Cooled:CP D/C:2010+

AD1987JCPZ, AD1987JCPZ-RL, AD1988A Datasheet download

Five Points

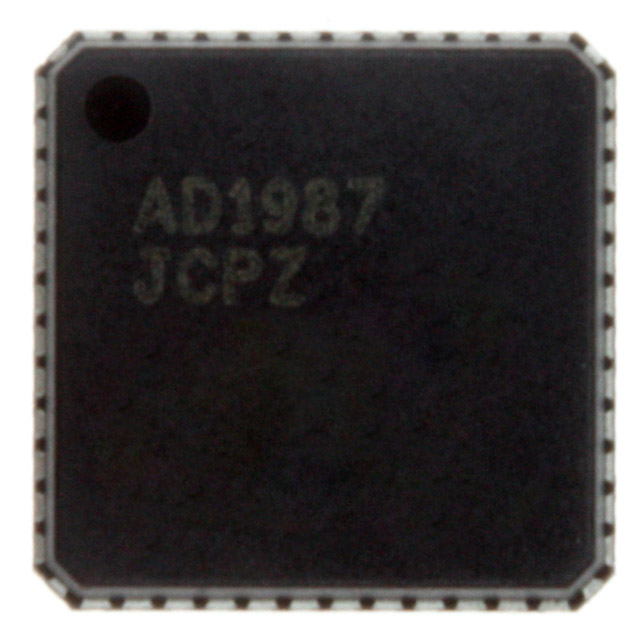

Part Number: AD1987JCPZ

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc

Package Cooled: CP

D/C: 2010+

Description: IC CODEC HD AUD SOUNMAX 48-LFCSP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AD1987JCPZ Parameters

Technical/Catalog Information	AD1987JCPZ
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Type	Audio Codec, HD
Number of ADCs / DACs	4 / 8
Dynamic Range, ADCs / DACs (db) Typ	-
S/N Ratio, ADCs / DACs (db) Typ	-
Resolution (Bits)	24 b
Voltage - Supply, Analog	3.13 V ~ 3.46 V
Voltage - Supply, Digital	2.97 V ~ 3.63 V
Mounting Type	Surface Mount
Package / Case	48-LFCSP
Packaging	Tube
Operating Temperature	0°C ~ 70°C
Sigma Delta	No
Interface	Serial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AD1987JCPZ AD1987JCPZ

AD1987JCPZ-RL Parameters

Technical/Catalog Information	AD1987JCPZ-RL
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Type	Audio Codec, HD
Number of ADCs / DACs	4 / 8
Dynamic Range, ADCs / DACs (db) Typ	-
S/N Ratio, ADCs / DACs (db) Typ	-
Resolution (Bits)	24 b
Voltage - Supply, Analog	3.13 V ~ 3.46 V
Voltage - Supply, Digital	2.97 V ~ 3.63 V
Mounting Type	Surface Mount
Package / Case	48-LFCSP
Packaging	Tape & Reel (TR)
Operating Temperature	0°C ~ 70°C
Sigma Delta	No
Interface	Serial
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AD1987JCPZ RL AD1987JCPZRL

AD1988A General Description

The AD1988 family of audio CODECs and SoundMAX? software provides superior HD Audio quality that exceeds Vista Premium performance requirements. The AD1988A and AD1988B have 10 DACs and 6 ADCs, 3

AD1988A Maximum Ratings

Parameter	Rating
Digital (DVDD) Digital I/O (DVIO) Analog (AVDD) Input Current (Except Supply Pins) Analog Input Voltage (Signal Pins) Digital Input Voltage (Signal Pins) Ambient Temperature (Operating) Storage Temperature Range	−0.30 V to +3.65 V −0.30 V to +3.65 V −0.30 V to +3.65 V ±10.0 mA −0.30 V to AVDD + 0.3 V −0.30 V to DVIO + 0.3 V 0°C to +70°C −65°C to +150°C

AD1988A Features

Ten 192 kHz DACs
Five independent stereo DAC pairs
7.1 surround sound plus independent headphone
Independent 8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz,
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
sample rates
Selectable stereo mixer on outputs
16-, 20-, and 24-bit PCM resolution
Six 192 kHz ADCs
Three independent stereo ADC pairs
Simultaneous record of up to three stereo channels
Support for quad microphone arrays plus independent
capture channel
Independent 8 kHz, 11.025 kHz, 16 kHz, 22.05 kHz, 32 kHz,
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
sample rates
16-, 20-, and 24-bit resolution
S/PDIF output
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
sample rates
16-, 20-, and 24-bit data widths
PCM, WMA/PRO, Dolby®, AC3, and DTS® formats
Digital PCM gain control
Digital PCM ADC/stream mixer
S/PDIF input
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, and 192 kHz
sample rates
16-, 20-, and 24-bit data widths
PCM, WMA/PRO, Dolby, AC3, and DTS formats
Digital PCM gain control
Auto synchronizes to source High quality stereo CD input with GND sense
MONO_OUT pin for internal speakers or telephony
Retasking jack support
Three stereo headphone amps
AD1988A: Windows Vista™ Operating System Premium Logo
compliant
95 dB outputs
90 dB audio inputs
AD1988B: Windows Vista Premium Logo compliant and
Dolby Master Studio™ compliant
101 dB outputs 92 dB audio inputs
Internal 32-bit arithmetic for greater accuracy Impedance and presence detection on all jacks
Analog PCBEEP and digital synthesis BEEP
C/LFE channel swap
Two general-purpose digital I/O (GPIO) pins
3.3 V analog and digital supplies
Reduced support components
Advanced power management modes
48-pin LQFP and LFCSP_VQ package options, Pb-free
Supports Andrea Active Noise Reduction headphones
Hardware volume control
Built-in microphone gain amps
Adjustable microphone bias pins

AD1988A Connection Diagram
