A8436, A8436EEJTR-T, A8437EEJTR-T

Table of contents:
Info of A8436
Info of A8436EEJTR-T
Info of A8437EEJTR-T

A8436, A8436EEJTR-T, A8437EEJTR-T Selling Leads, Datasheet

MFG:Allegro Microsystems Inc (VA) Category:Integrated Circuits (ICs) Package Cooled:QFN D/C:0645NOPB

A8436, A8436EEJTR-T, A8437EEJTR-T Datasheet download

Five Points

Part Number: A8436EEJTR-T

Category: Integrated Circuits (ICs)

MFG: Allegro Microsystems Inc (VA)

Package Cooled: QFN

D/C: 0645NOPB

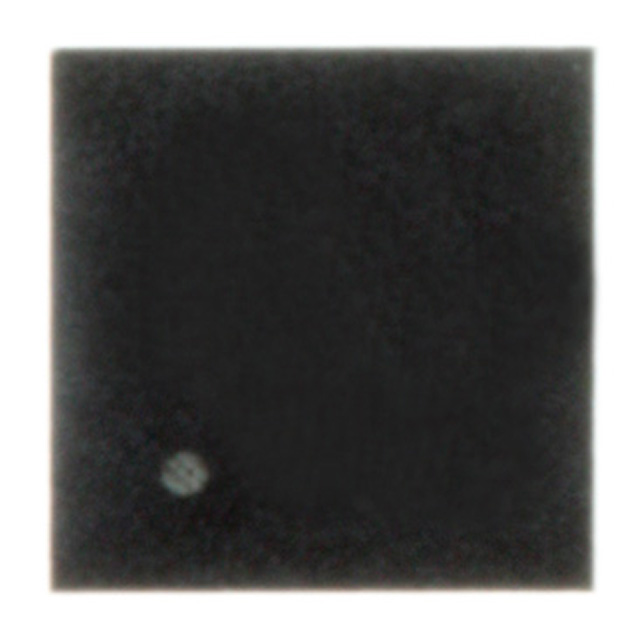

Description: IC PHOTOFLASH CHARGER 10-MLP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

A8436 General Description

The A8436 is a highly integrated IC that charges photoflash capacitors for digital and film cameras. It also features an integrated IGBT driver that facilitates the flash discharge function and saves board space.

To charge the photoflash capacitor, the A8436 integrates a 40 V, DMOS switch that drives the transformer in a flyback topology, allowing optimized design with tight coupling and high efficiency. A proprietary control scheme optimizes the capacitor charging time. Low quiescent current and low shutdown current further improve system efficiency and extend battery life.

Three levels of switch current limit are provided:1.0, 1.2, and 1.4 A. The level is determined by configuring the ILIM pin as grounded, floating, or pulled up to IC supply voltage, respectively.

The CHARGE pin enables the A8436 and starts the charging of the output capacitor. When the designated output voltage is reached, the A8436 stops the charging until the CHARGE pin is toggled again. Pulling the CHARGE pin low stops charging. The DONE pin is an open-drain indicator of when the designated output voltage is reached.

The A8436 can be used with two Alkaline/NiMH/NiCAD or one single-cell Li+ battery connected to the transformer primary. Connect the VIN pin to a 3.0 to 5.5 V supply, which can be either the system rail or the Li+ battery, if used.

The A8436 is available in a very low profile (0.75 mm) 10-terminal 3×3 mm MLP/TDFN package,making it ideal for space-constrained applications. It is lead (Pb) free, with 100% matte-tin leadframe plating.

A8436 Maximum Ratings

Input or Output Voltage
    SW pin, V_SW......................................................... 0.3 to 40 V
    IGBTDRV pin, V_IGBTDRV.............................. 0.3 to V_IN+ 0.3 V
    FB pin, V_FB ............................................................. 0.3 to V_IN    All other pins, V_x ................................................... 0.3 to 7 V
Operating Ambient Temperature, T_A................. 40°C to 85°C
Maximum Junction Temperature, T_J(max) .......................... 150°C
Storage Temperature, T_S................................ 55°C to 150°C

A8436 Features

·Power with 1 Li+ or 2 Alkaline/NiMH/NiCAD batteries
·Adjustable output voltage
·>75% efficiency
·Three levels of switch current limit: 1.0, 1.2, 1.4 A
·Fast charge time
·Charge complete indication
·Integrated IGBT driver with trigger
·No primary-side Schottky diode needed
·Low-profile package (0.75 mm nominal height)

A8436 Typical Application

·Digital camera flash
·Film camera flash
·Cell phone flash
·Emergency strobe light

A8436 Connection Diagram

A8436EEJTR-T Parameters

Technical/Catalog Information	A8436EEJTR-T
Vendor	Allegro Microsystems Inc (VA)
Category	Integrated Circuits (ICs)
Applications	Photoflash Capacitor Charger
Current - Supply	1.3mA
Voltage - Supply	3 V ~ 5.5 V
Package / Case	10-MLP
Packaging	Digi-Reel?
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	A8436EEJTR T A8436EEJTRT 620 1098 6 ND 62010986ND 620-1098-6
