MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:Sot-323 D/C:09+

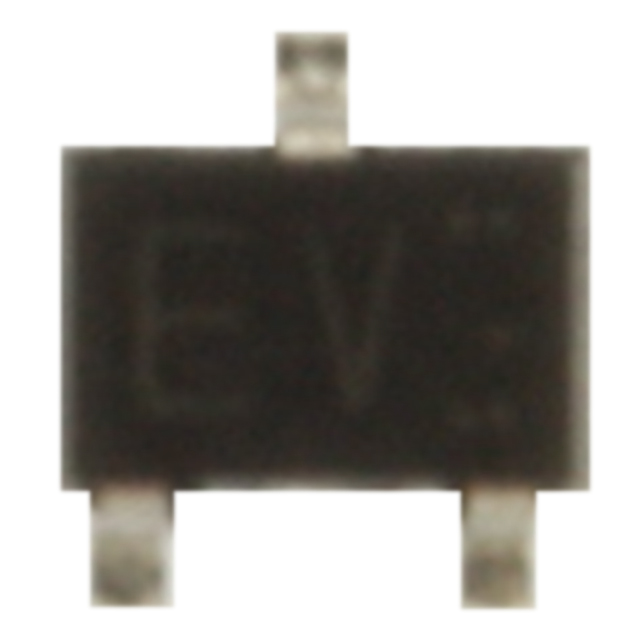

2SB1689, 2SB1689T106, 2SB169 Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor(VA)
Package Cooled: Sot-323
D/C: 09+
Description: TRANS PNP 12V 1.5A SOT-323
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: 2SB0621
File Size: 48571 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 2SB0621
File Size: 48571 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 2SB1690
File Size: 44835 KB
Manufacturer: ROHM
Download : Click here to Download
| Technical/Catalog Information | 2SB1689T106 |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | PNP |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Current - Collector (Ic) (Max) | 1.5A |
| Power - Max | 200mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 270 @ 200mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 25mA, 500mA |
| Frequency - Transition | 400MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-70-3, SOT-323-3 |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 2SB1689T106 2SB1689T106 2SB1689T106DKR ND 2SB1689T106DKRND 2SB1689T106DKR |
