1N4935-E3/73, 1N4935G, 1N4935GP Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor
Package Cooled: N/A
D/C: 09+

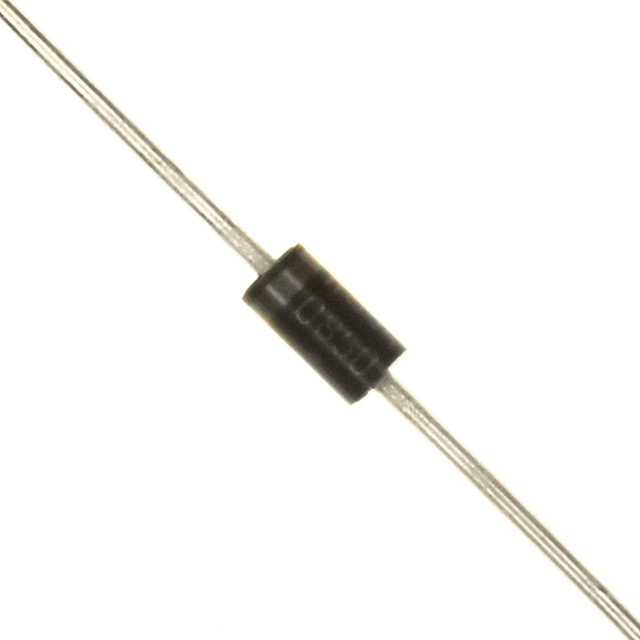

Description: DIODE GPP FAST 200V 1A DO-41
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: 1N4000
File Size: 220898 KB
Manufacturer: MICROSEMI [Microsemi Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 1N4935G
File Size: 399170 KB
Manufacturer: DIODES
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 1N4935GP
File Size: 356352 KB
Manufacturer: FAIRCHILD
Download : Click here to Download
| Technical/Catalog Information | 1N4935G |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 1A |
| Reverse Recovery Time (trr) | 300ns |
| Current - Reverse Leakage @ Vr | 5A @ 200V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Axial |
| Package / Case | DO-41, Axial |
| Packaging | Bulk |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 1N4935G 1N4935G 1N4935GOS ND 1N4935GOSND 1N4935GOS |
| Part Number | 1N4935G |
| Total Capacitance CT (pF) | 15 |
| Max Av Rectified Current IO (A) | 1 |
| Peak Repetitive Reverse Voltage VRRM (V) | 200 |
| Reverse Recovery Time trr (ns) | 200 |
| Max Peak Forward Surge Current IFSM (A) | 30 |
| Forward Voltage Drop VF (V) | 1.2 |
| Max Reverse Current IR (µA) | 5 |
| Technical/Catalog Information | 1N4935GP |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 1A |
| Reverse Recovery Time (trr) | 150ns |
| Current - Reverse Leakage @ Vr | 5A @ 200V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Axial |
| Package / Case | DO-41, Axial |
| Packaging | Tape & Reel (TR) |
| Capacitance @ Vr, F | 12pF @ 4V, 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 1N4935GP 1N4935GP |
|
Symbol |
Parameter |
Value |
Units |
|
IO |
Average Rectified Current .375 " lead length @ TA = 75°C |
1.0 |
A |
|
if(surge) |
Peak Forward Surge Current 8.3 ms single half-sine-wave Superimposed on rated load (JEDEC method) |
30 |
A |
|
PD |
Total Device Dissipation Derate above 25°C |
2.73 |
W |
|
18 |
mW/°C | ||
|
RqJA |
Thermal Resistance, Junction to Ambient |
55 |
°C/W |
|
Tstg |
Storage Temperature Range |
-65 to +175 |
°C |
|
TJ |
Operating Junction Temperature |
-65 to +175 |
°C |
