uPC29M00

Features:

• Output current in excess of 0.5 A
• Low dropout voltage V_DIF = 0.5 V TYP. (at I_O = 0.5 A)
• On-chip overcurrent and thermal protection circuit
• On-chip output transistor safe area protection circuit

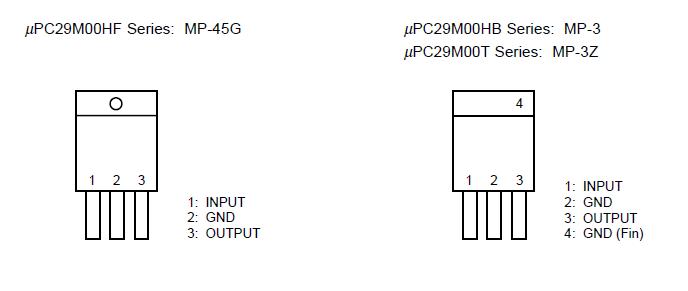

Pinout




Specifications

Parameter	Symbol	Rating		Unit
		PC29M00HF	PC29M00HB, PC29M00T
Input Voltage	VIN	20		V
Internal Power DissipationNote	PT	15	10	W
Operating Ambient Temperature	TA	30 to +85		°C
Operating Junction Temperature	TJ	30 to +150		°C
Storage Temperature	Tstg	55 to +150		°C
Thermal Resistance (Junction to Case)	Rth (J-C)	7	12.5	°C/W
Thermal Resistance (Junction to Ambient)	Rth (J-A)	65	125	°C/W

Note TC = 25 °C, Internally limited When operating junction temperature rises up to 150 °C, the internal circuit shutdown output voltage.

Caution Exposure to Absolute Maximum Ratings for extended periods may affect device reliability; exceeding the ratings could cause permanent damage. The parameters apply independently. The device should be operated within the limits specified under DC and AC Characteristics.


Description

The PC29M00 series of low dropout voltage three terminal positive regulators is constructed with PNP output transistor. The PC29M00 series feature the ability to source 0.5 A of output current with a low dropout voltage of typically 0.5 V.

The power dissipation of the PC29M00 series can be drastically reduced compared with the conventional three terminal positive voltage regulators that is constructed with NPN output transistor. Also, this series corresponds to the low voltage output (3 V, 3.3 V) which is not in the conventional low dropout regulators (PC24M00A series).
