ths4500

Features: Fully Differential Architecture Bandwidth: 370 MHz Slew Rate: 2800 V/µs IMD3: −90 dBc at 30 MHz OIP3: 49 dBm at 30 MHz Output Common-Mode Control Wide Power Supply Voltage Range: 5 V, ±5 V,12 V, 15 V Input Common-Mode Range Shifted toInclude the Negative Power Supply Rail Pow...

product image

ths4500 Picture
See larger image
SeekIC No. : 004518897 Detail

ths4500: Features: Fully Differential Architecture Bandwidth: 370 MHz Slew Rate: 2800 V/µs IMD3: −90 dBc at 30 MHz OIP3: 49 dBm at 30 MHz Output Common-Mode Control Wide Power Supply Voltage Rang...

ths4500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ths4500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

 Fully Differential Architecture
Bandwidth:  370 MHz
Slew Rate:  2800 V/µs
IMD3: −90 dBc at 30 MHz
OIP3: 49 dBm at 30 MHz
Output Common-Mode Control
Wide Power Supply Voltage Range: 5 V, ±5 V,12 V, 15 V
Input Common-Mode Range Shifted toInclude the Negative Power Supply Rail
Power-Down Capability (THS4500)
Evaluation Module Available


Application

  High Linearity Analog-to-Digital Converter
     Preamplifier
   Wireless Communication Receiver Chains
   Single-Ended to Differential Conversion
   Differential Line Driver
   Active Filtering of Differential Signals


Pinout

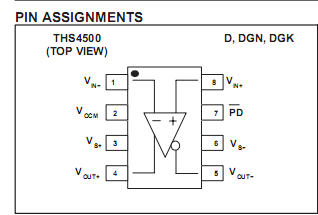

Connection Diagram


Specifications

  UNIT
Supply voltage, VS 16.5 V
Input voltage, VI ±VS
Output current, IO (2) 150 mA
Differential input voltage, VID 4 V
Continuous power dissipation See Dissipation Rating Table
Maximum junction temperature, TJ (3) 150
Maximum junction temperature, continuooperation, long term reliability TJ (4) 125
Operating free-air temperaturerange, TA
 C suffix 0 to 70
I suffix −40 to 85
Storage temperature range, Tstg −65 to 150
Lead temperature
1,6 mm (1/16 inch) from case for 10 seconds		 300
ESD ratings:
 HBM 4000 V
CDM 2000 V
MM 100 V



Description

The THS4500 and THS4501 are high-performance fully differential amplifiers from Texas Instruments. TheTHS4500, featuring power-down capability, and the THS4501, without power-down capability, set new performance standardsfor fully differential amplifiers with unsurpassed linearity, supporting 14-bit operation through 40 MHz.Package options include the 8-pin SOIC and the 8-pin MSOP with PowerPAD for a smaller footprint, enhancedac performance, and improved thermal dissipation capability.
