Features: • Seven H-bridge circuits employing power MOSFET
• Low-voltage driving
VDD = 2.7 to 3.6 V
VM = 2.7 to 5.5 V
• Output on-state resistance: 1.0 Ω TYP., 1.5 Ω MAX. (sum of top and bottom stage, ch1 to ch4, and ch7)
1.5 Ω TYP., 2.0 Ω MAX. (sum of top and bottom stage, ch5 and ch6)
• PWM output (ch1 to ch6) , linear output (ch7)
• Output current
<ch1 to ch6>
DC current: 0.4 A/ch (when each channel is used independently)
Peak current: 0.7 A/ch (when each channel is used independently)
<ch7>
DC current: 0.5 A/ch (when used independently)
Peak current: 0.7 A/ch (when used independently)
• Input logic frequency: 100 kHz supported
• Undervoltage lockout circuit
Shuts down the internal circuit at VDD = 1.7 V TYP.
• Overheat protection circuit
Operates at 150°C or more and shuts down internal circuitry.
• 56-pin WQFN (8 mm, 0.5 mm pitch)

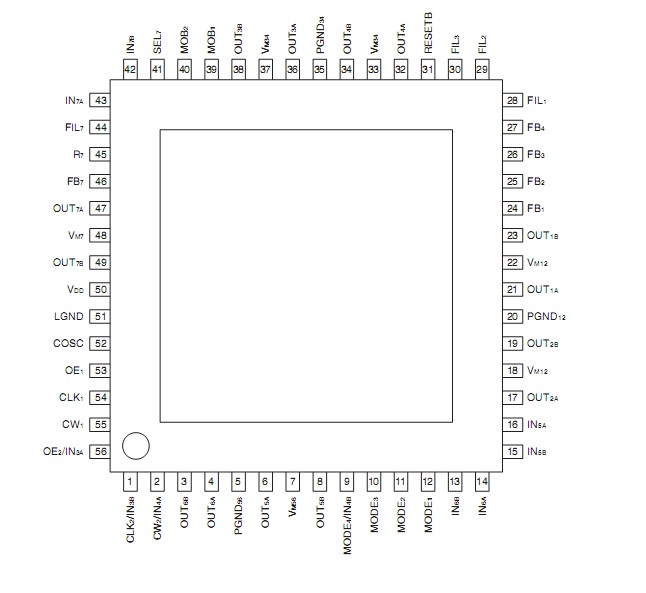

Pinout
Specifications
| Parameter |
Symbol |
Condition |
Rating |
Unit |
| Power supply voltage |
VDD |
Control block |
-0.5 to +6.0 |
V |
| VM |
Motor block |
-0.5 to +6.0 |
V |
| Input voltage |
VIN |
|
-0.5 to VDD +0.5 |
V |
| Output pin voltage |
VOUT |
Motor block |
6.2 |
V |
| DC output current (ch1 to 6ch) |
ID(DC) |
DC (during output independent operation) |
±0.4 |
A/ch |
| DC output current (ch7) |
ID(DC) |
DC (during output independent operation) |
±0.5 |
A/ch |
| Instantaneous output current |
ID(pulse) |
PW < 10 ms, Duty Cycle 20%
(during output independent operation) |
±0.7 |
A/ch |
| Power consumption |
PT |
|
1.0 |
W |
| Peak junction temperature |
T ch(MAX) |
|
150 |
|
| Storage temperature |
Tstg |
|
-55 to +150 |
|
Description The pd168116a is a 7-channel H-bridge driver with a micro step function supporting pulse input that consists of a CMOS control circuit and a MOS output stage. It can reduce the current consumption and the voltage loss at the output stage compared with a conventional driver using bipolar transistors, thanks to employment of a MOS process. The pd168116a can drive a stepping motor by inputting pulses, so that the number of signal lines necessary for controlling the motor can be decreased.
The package of pd168116a is a 56-pin WQFN that helps reduce the mounting area and height.
The pd168116a can be used to drive two stepping motors, or two DC motors and one coil.
pd168116a Data Sheet
