nRF2402G

RF Transmitter 1.9-3.6V 1MBIT XMTR 2.4GHz SHCKBRST

product image

nRF2402G Picture
See larger image
SeekIC No. : 00615422 Detail

nRF2402G: RF Transmitter 1.9-3.6V 1MBIT XMTR 2.4GHz SHCKBRST

nRF2402G Data Sheet

floor Price/Ceiling Price

US $ .77~1.2 / Piece | Get Latest Price
Part Number:
nRF2402G
Mfg:
Nordic Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 0~245
  • 245~500
  • 500~1000
  • Unit Price
  • $1.2
  • $.89
  • $.77
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : Single Chip Radio Transmitter Package / Case : QFN-16
Operating Frequency : 2.4 GHz Packaging : Tray

Description

Package / Case : QFN-16
Packaging : Tray
Operating Frequency : 2.4 GHz
Type : Single Chip Radio Transmitter


Features:

` True single chip GFSK transceiver in a small 16-pin package (QFN16 4x4)
` Data rate 0 to1Mbps
` Only 2 external components
` Multi channel operation
` 125 channels
` Channel switching time <200s.
` Support frequency hopping
` Data slicer / clock recovery of data
` Address and CRC computation
` DuoCeiver™ for simultaneous dual receiver topology
` ShockBurst™ mode for ultra-low power operation and relaxed MCU performance
` Power supply range: 1.9 to 3.6 V
` Low supply current (TX), typical 10.5mA peak @ -5dBm output power
` Low supply current (RX), typical 18mA peak in receive mode
` 100% RF tested
` World wide use


Application

· Wireless mouse, keyboard, joystick
· Keyless entry
· Wireless data communication
· Alarm and security systems
· Home automation
· Home automation
· Surveillance
· Automotive
· Telemetry
· Intelligent sports equipment
· Industrial sensors
· Toys


Pinout

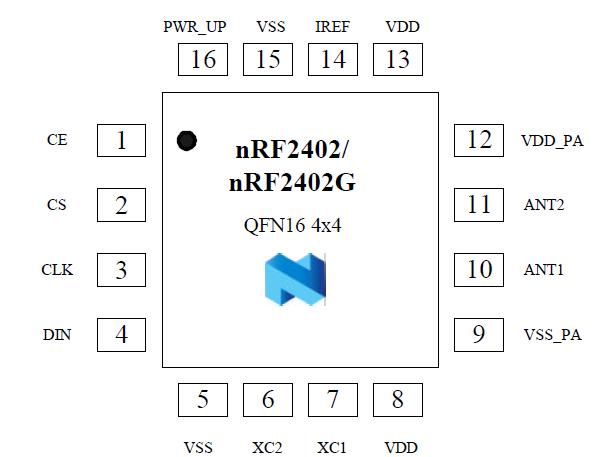

Connection Diagram


Specifications

Supply voltages
VDD....................................... - 0.3V to +3.6V
VSS .......................................................... 0V
Input voltage
VI ................................ - 0.3V to VDD + 0.3V
Output voltage
VO.................................- 0.3V to VDD + 0.3V
Power dissipation
PD (TA=85°C).....................................90mW
Temperatures
Operating Temperature.. -25°C to +85°C
Storage Temperature... -40°C to +125°C
Note: Stress exceeding one or more of the limiting values may cause permanent damage to the device.


Description

nRF2402/nRF2402G is a single-chip radio transmitter for the world wide 2.4 - 2.5 GHz ISM band. The transmitter consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator and a modulator. Output power and frequency channel is easily programmable by use of the 3-wire interface. Current consumption is very low, only 10 mA at an output power of -5dBm. Built-in ShockBurst™ and Power Down modes makes power saving easily realizable.
