mPD1723GF-013

Features: ` Worldwide FM/MW banks and European LW band can be received.` Abundant tuning functions, including manual tuning, autotuning (seek, scan), and preset memory scan` Six buttons, independent preset memories for 18 FM stations (FM1, FM2, FM3; 6 stations each), 12 MW stations (MW1, MW2; 6...

product image

mPD1723GF-013 Picture
See larger image
SeekIC No. : 004426218 Detail

mPD1723GF-013: Features: ` Worldwide FM/MW banks and European LW band can be received.` Abundant tuning functions, including manual tuning, autotuning (seek, scan), and preset memory scan` Six buttons, independen...

mPD1723GF-013 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
mPD1723GF-013
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Worldwide FM/MW banks and European LW band can be received.
` Abundant tuning functions, including manual tuning,
  autotuning (seek, scan), and preset memory scan
` Six buttons, independent preset memories for 18 FM stations
  (FM1, FM2, FM3; 6 stations each), 12 MW stations (MW1, MW2;
  6 stations each), 6 LW stations, and VF band
` FM: 3, MW: 2, LW: 1, VF: 1 last channel memories
` VF broadcast station (traffic information) autotuning
  (SK signal search) and DK standby function
` MONO (MONORAL) and LOC (LOCAL/DX) control output and display
` "ST" (STEREO) display
` MTL (METAL), NR1 (NOISE REDUCTION), NR2, and AMS
  (AUTO MUSIC SEARCH) control output and display
` Auto preset memory function
` " " (Compact Disk) display
` LOUD (LOUDNESS) control output and display
` 12 hour and 24 hour clock display function (no clock display also possible)
` Single 5 V ±10 % power supply
` On-chip prescaler (200 MHz max. Vin = 0.3 VP-P), IF counter,
  LCD driver (1/2 duty, 1/2 bias drive, frame frequency (100 Hz))


Pinout

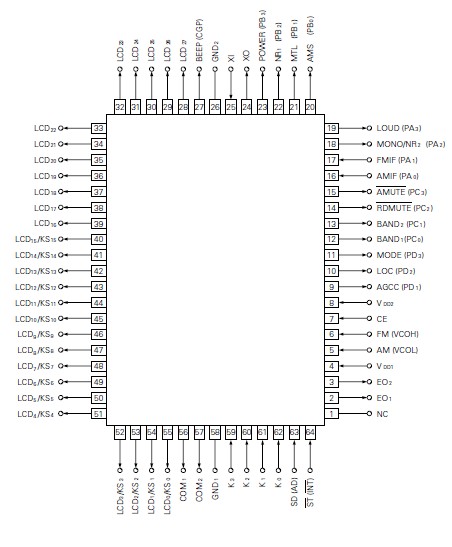

Connection Diagram


Specifications

Power Supply Voltage

VDD

0.3 to +6.0

V

Input Voltage

VI

0.3 to +VDD +0.3

V

Output Voltage

VO

0.3 to +VDD +0.3

V

Output Sink Current

IO

10

mA

Operating Temperature

Ta

40 to +85

°C

Storage Temperature

Tstg

55 to +125

°C




Description

The mPD1723GF-013 and mPD1723GF-213 are CMOS LSI developed for worldwide PLL frequency synthesizer FM/MW/LW tuner use.

Their package of mPD1723GF-013 and mPD1723GF-213 is a 64-pin QFP. On-chip PLL frequency synthesizer, controller, 200 MHz prescaler, LCD driver, and IF counter allow the construction of a compact FM/MW/LW tuner with a high-performance clock for highend car stereo and home stereo sets.
