mA747C

Features: • No frequency compensation required• Short-circuit protection• Offset voltage null capability• Large common-mode and differential voltage ranges• Low power consumption• No latch-upPinoutSpecifications SYMBOL PARAMETER RATING UNIT ...

product image

mA747C Picture
See larger image
SeekIC No. : 004407991 Detail

mA747C: Features: • No frequency compensation required• Short-circuit protection• Offset voltage null capability• Large common-mode and differential voltage ranges• Low power c...

mA747C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
mA747C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• No frequency compensation required
• Short-circuit protection
• Offset voltage null capability
• Large common-mode and differential voltage ranges
• Low power consumption
• No latch-up


Pinout

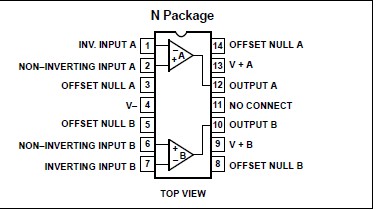

Connection Diagram


Specifications

SYMBOL
PARAMETER
RATING
UNIT
VS
 Supply voltage
±18
V
PD MAX
 Maximum power dissipation TA=25°C (still air)1
1500
mW
VIN
 Differential input voltage
±30
V
VIN
 Input voltage2
±15
V
 Voltage between offset null and V-
±0.5
V
TSTG
 Storage temperature range
65 to +150
°C
TA
 Operating temperature range
0 to +70
°C
TSOLD
 Lead temperature (soldering, 10sec)
300
°C
ISC
 Output short-circuit duration
Indefinite
°C
NOTES:
1. Derate above 25°C at the following rates: N package at 12mW/°C
2. For supply voltages less than ±15V, the absolute maximum input voltage is equal to the supply voltage.


Description

The 747 is a pair of high-performance monolithic operational amplifiers constructed on a single silicon chip. High common-mode voltage range and absence of "latch-up" make the 747 ideal for use as a voltage-follower. The high gain and wide range of operating voltage provides superior performance in integrator, summing amplifier, and general feedback applications. The 747 is short-circuit protected and requires no external components for frequency compensation. The internal 6dB/octave roll-off insures stability in closed-loop applications. For single amplifier performance, see mA741 data sheet.
