ispLSI2064E

Features:

SuperFAST HIGH DENSITY IN-SYSTEM PROGRAMMABLE LOGIC
- 2000 PLD Gates
- 64 I/O Pins, Four Dedicated Inputs
- 64 Registers
- High Speed Global Interconnect
- Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.
- Small Logic Block Size for Random Logic
- 100% Functionally and JEDEC Upward Compatible with ispLSI 2064 Devices
• HIGH PERFORMANCE E2CMOS® TECHNOLOGY
- fmax = 200 MHz Maximum Operating Frequency
- tpd = 4.5 ns Propagation Delay
- TTL Compatible Inputs and Outputs
- 5V Programmable Logic Core
- ispJTAG™ In-System Programmable via IEEE 1149.1(JTAG) Test Access Port
- User-Selectable 3.3V or 5V I/O Supports Mixed Voltage Systems
- PCI Compatible Outputs
- Open-Drain Output Option
- Electrically Erasable and Reprogrammable
- Non-Volatile
- Unused Product Term Shutdown Saves Power
• ispLSI OFFERS THE FOLLOWING ADDED FEATURES
- Increased Manufacturing Yields, Reduced Time-to-Market and Improved Product Quality
- Reprogram Soldered Devices for Faster Prototyping
• OFFERS THE EASE OF USE AND FAST SYSTEM SPEED OF PLDs WITH THE DENSITY AND FLEXIBILITY OF FIELD PROGRAMMABLE GATE ARRAYS
- Complete Programmable Device Can Combine Glue Logic and Structured Designs
- Enhanced Pin Locking Capability
- Three Dedicated Clock Input Pins
- Synchronous and Asynchronous Clocks
- Programmable Output Slew Rate Control to Minimize Switching Noise
- Flexible Pin Placement
- Optimized Global Routing Pool Provides Global Interconnectivity
• ispDesignEXPERT™ LOGIC COMPILER AND COMPLETE
ISP DEVICE DESIGN SYSTEMS FROM HDL
SYNTHESIS THROUGH IN-SYSTEM PROGRAMMING
- Superior Quality of Results
- Tightly Integrated with Leading CAE Vendor Tools
- Productivity Enhancing Timing Analyzer, Explore Tools, Timing Simulator and ispANALYZER™
- PC and UNIX Platforms

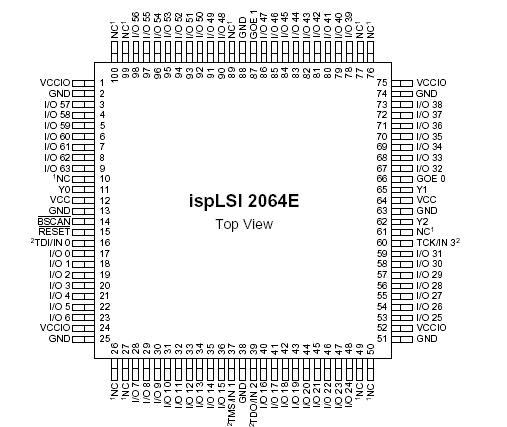

Pinout




Specifications

Supply Voltage Vcc ................................................... -0.5 to +7.0V
Input Voltage Applied .............................. -2.5 to VCC +1.0V
Off-State Output Voltage Applied ........... -2.5 to VCC +1.0V
Storage Temperature ..................................... -65 to 150°C
Case Temp. with Power Applied .................... -55 to 125°C
Max. Junction Temp. (TJ) with Power Applied ............ 150°C


Description

The ispLSI 2064E is a High Density Programmable Logic Device. The device contains 64 Registers, 64 Universal I/O pins, four Dedicated Input Pins, three Dedicated Clock Input Pins, two dedicated Global OE input pins and a Global Routing Pool (GRP). The GRP provides complete interconnectivity between all of these elements.The ispLSI 2064E features 5V in-system programmability and in-system diagnostic capabilities. The ispLSI 2064E offers non-volatile reprogrammability of the logic,as well as the interconnect to provide truly reconfigurable systems.
The basic unit of logic on the ispLSI 2064E device is the Generic Logic Block (GLB). The GLBs are labeled A0, A1.. B7 (see Figure 1). There are a total of 16 GLBs in the ispLSI 2064E device. Each GLB is made up of four macrocells. Each GLB has 18 inputs, a programmable AND/OR/Exclusive OR array, and four outputs which can be configured to beeither combinatorial or registered.Inputs to the GLB come from the GRP and dedicated inputs. All of the GLB outputs are brought back into the GRP so that they can be connected to the inputs of any GLB on the device.
