gm5221-LF-BC

Features: • Intelligent Image Processing™• Fully programmable zoom ratios• High-quality shrink capability from UXGA resolution• Programmable coefficients for variable sharpness control• RealRecovery™ provides full color recovery image for refresh rates hig...

product image

gm5221-LF-BC Picture
See larger image
SeekIC No. : 004354117 Detail

gm5221-LF-BC: Features: • Intelligent Image Processing™• Fully programmable zoom ratios• High-quality shrink capability from UXGA resolution• Programmable coefficients for variable s...

gm5221-LF-BC Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
gm5221-LF-BC
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Intelligent Image Processing™
• Fully programmable zoom ratios
• High-quality shrink capability from UXGA resolution
• Programmable coefficients for variable sharpness control
• RealRecovery™ provides full color recovery image for refresh rates higher than those supported by the LCD panel
• Analog RGB Input Port
• Supports up to 162 MHz (SXGA 75Hz / UXGA 60Hz)
• On-chip high-performance PLLs (single reference crystal required)
• Composite-sync and Sync-on-Green (SOG) support
• Input format detection
• Phase and image positioning
• Ultra-Reliable DVI-Compliant Input Port
• Operating up to 165 MHz (up to UXGA 60Hz)
• Direct connect to all DVI 1.0-compliant transmitters
• High-bandwidth Digital Content Protection (HDCP) Note: HDCP function is available H version only.
• CCIR-656 8-bit Video Input Port
• Supporting NTSC / PAL interlaced and progressive
• Direct connect to commercially available video decoders
• Spatial de-interlacing
• Advanced Color Management
• Programmable gamma correction (CLUT)
• TV color controls including hue and saturation controls
• Full color matrix allows end-users to experience the same colors as viewed on CRTs and other displays (e.g. sRGB compliance)
• Advanced Active Color Management ™ (ACM-II) provide flesh-tone compensation and image enhancement
• Adaptive Contrast and Color™ (ACC) ensures full dynamic range is used in video content
• On-chip Versatile OSD Controller
• On-chip RAM for high-quality programmable menus
• 1, 2 and 4-bit per pixel character cells
• Horizontal and vertical stretch of OSD menus
• Blinking, transparency and blending
• Supports two independent OSD menu rectangles
• Proportional fonts
• Embedded X86 On-chip Microcontroller
• High-performance X86 MCU with on-chip RAM and ROM
• External parallel ROM or serial SPI ROM interface
• Unified memory architecture simplifies chip programming
• 23 general-purpose inputs/outputs (GPIOs) available
• 2-wire serial bus master to control NVRAM, video decoder
• Two DDC2Bi ports with DMA buffer to internal RAM
• Four PWM outputs for analog backlight control, audio, etc.
• General-purpose ADC's for keypad and temperature sensing
• Integrated reset circuit
• Slow clock mode for 50mW sleep mode power consumption
• JTAG debug / ICE support for firmware debugging
• Built-in Test Pattern Generator
• Simplifies manufacturing / test
• Energy Spectrum Management (ESM™)
• Digital clock spectrum management
• Eliminates EMI suppression components and shielding
• Built-in LVDS Transmitters
• Four channel 6/8-bit LVDS transmitter
• Support for 8 or 6-bit panels with high-quality dithering
• Single / double wide up to SXGA 75Hz output
• Pin swap, odd / even swap and red / blue group swap of RGB outputs for flexibility in board layout
• Highly integrated System-on-a-Chip
• All system clocks synthesized from a single external crystal
• 50mW power saving mode
• 5-Volt tolerant inputs
• Two Layer PCB support
• On-chip reset feature to eliminate external reset component
• Integrated Schmitt trigger for HSYNC and VSYNC


Pinout

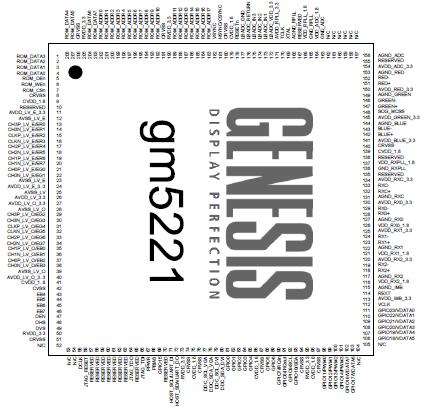

Connection Diagram


Specifications

PARAMETER SYMBOL MIN TYP MAX UNITS
3.3V Supply Voltages (1,2) V VDD_3.3 -0.3 - 3.6 V
1.8V Supply Voltages (1.2) V VDD_1.8 -0.3 - 1.98 V
Input Voltage (5V tolerant inputs) (1,2) VIN5Vtol -0.3 - 5.5 V
Input Voltage (non 5V tolerant inputs) (1,2) VIN -0.3 - 3.6 V
Electrostatic Discharge VESD - - ±2.0 KV
Latch-up ILA - - ±100 mA
Ambient Operating Temperature TA 0 - 70 °C
Storage Temperature TSTG -40 - 150 °C
Operating Junction Temp. TJ 0 - 125 °C
Thermal Resistance (Junction to Air) Natural Convection
                                          gm5221 on 4-layer PCB		 JA_4L - - 34.6 °C/W
Thermal Resistance (Junction to Case) Convection(3)                                                     gm5221 JC - - 17.0 °C/W
Soldering Temperature (30 sec.) TSOL - - TBD °C
Vapor Phase Soldering (30 sec.) TVAP - - TBD °C



Description

A functional block diagram of gm5221-LF-BC is illustrated below. Each of the functional units shown is described in the following sections.
