gm2115

Features: • Zoom (from VGA) and shrink (from UXGA) scaling• Integrated 8-bit triple-channel ADC / PLL• On-chip programmable OnPanel timing controller• Embedded microcontroller with parallel ROM interface• On-chip versatile OSD engine• All system clocks synthesiz...

product image

gm2115 Picture
See larger image
SeekIC No. : 004354062 Detail

gm2115: Features: • Zoom (from VGA) and shrink (from UXGA) scaling• Integrated 8-bit triple-channel ADC / PLL• On-chip programmable OnPanel timing controller• Embedded microcontrolle...

gm2115 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
gm2115
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Zoom (from VGA) and shrink (from UXGA) scaling
• Integrated 8-bit triple-channel ADC / PLL
• On-chip programmable OnPanel timing controller
• Embedded microcontroller with parallel ROM interface
• On-chip versatile OSD engine
• All system clocks synthesized from a single external crystal
• Programmable gamma correction (CLUT)
• RealColor™ controls provide sRGB compliance
• PWM back light intensity control
• 5 Volt tolerant inputs
• Low EMI and power saving features


Pinout

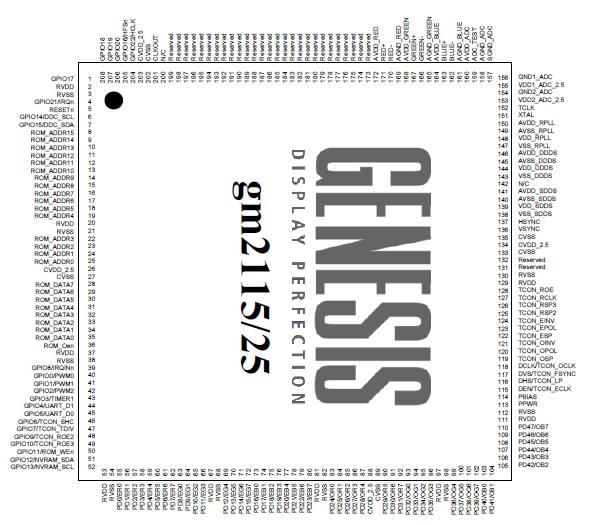

Connection Diagram


Specifications

PARAMETER SYMBOL MIN TYP MAX UNITS
3.3V Supply Voltages (1) VVDD_3.3 -0.3   3.6 V
2.5V Supply Voltages (1) VVDD_2.5 -0.3   2.75 V
Input Voltage (5V tolerant inputs) (1) VIN5Vtol -0.3   5.5 V
Input Voltage (non 5V tolerant inputs) (1) VIN -0.3   3.6 V
Electrostatic Discharge VESD     ±2.0 kV
Latch-up ILA     ±100 mA
Ambient Operating Temperature TA 0   70
Storage Temperature TSTG -40   125
Operating Junction Temp. TJ 0   125
Thermal Resistance (Junction to Air) Natural Convection JA     25.0 /W
Thermal Resistance (Junction to Case) Convection or air flow JC     14.0 /W
Soldering Temperature (30 sec.) TSOL     220
Vapor Phase Soldering (30 sec.) TVAP     220
