Product Details

Description



Features:

· Highly Integrated Solution With FET Pass Transistor and Reverse-Blocking Schottky and Thermal Protection
· Timer-Enable Function That Allows Host to Disable Charge Timer and Termination When Charge Current Is Shared With a Load or When Battery Is Absent
· Integrated Voltage and Current Regulation With Programmable Charge Current
· High-Accuracy Voltage Regulation (±1%)
· Ideal for Low-Dropout Linear Charger Designs for Single-Cell Li-Ion Packs With Coke or Graphite Anodes
· Up to 1.2-A Continuous Charge Current
· Safety-Charge Timer During Preconditioning and Fast Charge
· Integrated Cell Conditioning for Reviving Deeply Discharged Cells and Minimizing Heat Dissipation During Initial Stage of Charge
· Optional Temperature or Input-Power Monitoring Before and During Charge
· Various Charge-Status Output Options for Driving Single, Double, or Bicolor LEDs or Host-Processor Interface
· Charge Termination by Minimum Current and Time
· Low-Power Sleep Mode
· Packaging: 5 mm × 5 mm MLP (bq24007)or 20-Lead TSSOP PowerPADTM



Application

· PDAs
· Internet Appliances
· MP3 Players
· Digital Cameras

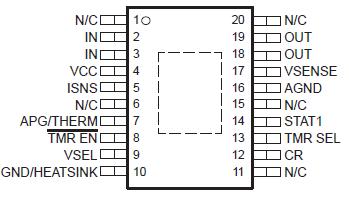

Pinout

  Connection Diagram


Specifications

bq24007
bq24008
Supply voltage (VCC with respect to GND)
13.5 V
Input voltage (IN, ISNS, TMR EN, APG/THERM/CR/STAT1/STAT2, VSENSE, TMR SEL, VSEL) (all with respect to GND)
13.5 V
Output current (OUT pins)
2 A
Output sink/source current (STAT1 and STAT2)
10 mA
Operating free-air temperature range, TA
−40to 70
Storage temperature range, Tstg
−65 to 150
Junction temperature range, TJ
−40 to 125
Lead temperature (Soldering, 10 s)
300



Description

The bq2400x series ICs are advanced Li-Ion linear charge management devices for highly integrated and space-limited applications. They combine highaccuracy current and voltage regulation; FET passtransistor and reverse-blocking Schottky; battery conditioning, temperature, or input-power monitoring;charge termination; charge-status indication; and charge timer in a small package.

The bq24007 and bq24008 provide the timer-enable function, allowing the host to disable the charge timer when charge current is shared with a load or when the battery is absent. This feature is ideal for applications such as cellular phones, PDAs, and internet appliances.

The bq2400x measures battery temperature using an external thermistor. For safety reasons, the bq2400x inhibits charge until the battery temperature is within the user-defined thresholds. Alternatively, the user can monitor the input voltage to qualify charge. The bq2400x series then charge the battery in three phases:preconditioning, constant current, and constant voltage. If the battery voltage of bq24007 is below the internal low-voltage threshold, the bq2400x uses low-current precharge to condition the battery. A preconditioning timer of bq24007 provides additional safety. Following preconditioning,the bq2400x applies a constant-charge current to the battery. An external sense-resistor sets the magnitude of the current. The constant-current phase is maintained until the battery reaches the
charge-regulation voltage. The bq2400x then transitions to the constant voltage phase. The user can configure the device for cells with either coke or graphite anodes. The accuracy of the voltage regulation is better than ±1% over the operating junction temperature and supply voltage range.

Charge of bq24007 is terminated by maximum time or minimum taper current detection

The bq2400x automatically restarts the charge if the battery voltage falls below an internal recharge threshold.
