PT2128A

Features: High performance CMOS technologyLow power consumption DIP or SO package(22 pin SO not available)Up to 3 dependent/independent swing-head/light outputAvailable in 16, 18, 20, 22, 24 pin package for none, one set or two sets of swing head and/ocontrolBuilt-in remote control decoding circui...

product image

PT2128A Picture
See larger image
SeekIC No. : 004466184 Detail

PT2128A: Features: High performance CMOS technologyLow power consumption DIP or SO package(22 pin SO not available)Up to 3 dependent/independent swing-head/light outputAvailable in 16, 18, 20, 22, 24 pin pac...

PT2128A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PT2128A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High performance CMOS technology
Low power consumption
DIP or SO package(22 pin SO not available)
Up to 3 dependent/independent swing-head/light output
Available in 16, 18, 20, 22, 24 pin package for none,
one set or two sets of swing head and/ocontrol
Built-in remote control decoding circuitry with mask option custom code
Optional independent light control
90 seconds cycle/6 seconds per step(off step 3 seconds) rhythm wind pattern
Four operation modes: ordinary, rhythm, ordinary sleep and rhythm sleep.
Memory start-up mode
2-3 seconds middle wind start-up (mask option)


Application

Optimized for fan application
Suitable for heater fan, cooling fan,
and other home appliances with remote control, timer and/or
output level control


Pinout

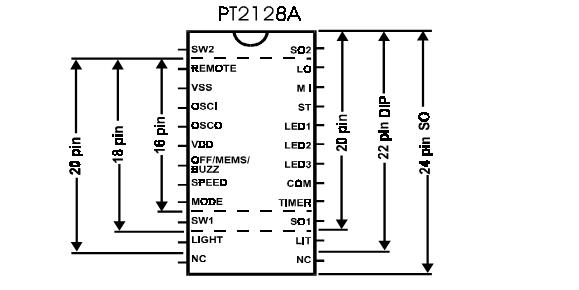

Connection Diagram


Description

PT2128A is a high performance electronic fan controller LSI.  Speed control, off-timer, rhythm wind, sleep mode, head swing and/or light control are all built into a single chip.  Indicator LED output, buzzer output, key control input, as well as remote control decoding circuitry are all provided to build a full function electronic fan with remote control capability having the highest performance with the least external components.  Pin assignment and application circuit are optimized for easy PCB layout and cost saving  for electronic fan application.
