WM8569

Features: • Audio Performance− 103dB SNR ('A' weighted @ 48kHz) DAC− DAC Sampling Frequency: 8kHz 192kHz− 100dB SNR ('A' weighted @ 48kHz) ADC− ADC Sampling Frequency: 32kHz 96kHz• Independent Sampling Rates for ADC and DAC• 3-wire SPI Serial or Hardware...

product image

WM8569 Picture
See larger image
SeekIC No. : 004546153 Detail

WM8569: Features: • Audio Performance− 103dB SNR ('A' weighted @ 48kHz) DAC− DAC Sampling Frequency: 8kHz 192kHz− 100dB SNR ('A' weighted @ 48kHz) ADC− ADC Sampling Frequency:...

WM8569 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WM8569
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Audio Performance
− 103dB SNR ('A' weighted @ 48kHz) DAC
− DAC Sampling Frequency: 8kHz 192kHz
− 100dB SNR ('A' weighted @ 48kHz) ADC
− ADC Sampling Frequency: 32kHz 96kHz
• Independent Sampling Rates for ADC and DAC
• 3-wire SPI Serial or Hardware Control Interface
• Audio Mute and De-Emphasis Functions
• Programmable Audio Data Interface Modes
− 16/20/24/32 bit Word Lengths
− I2S, Left, Right Justified or DSP
• 2.7V to 5.5V Analogue Supply
• 2.7V to 3.6V Digital Supply
• 28-lead SSOP Package


Application

• DVD Recorder
• Personal Video Recorder
• PC Sound Card
• Automotive Audio
• LCD-TV


Pinout

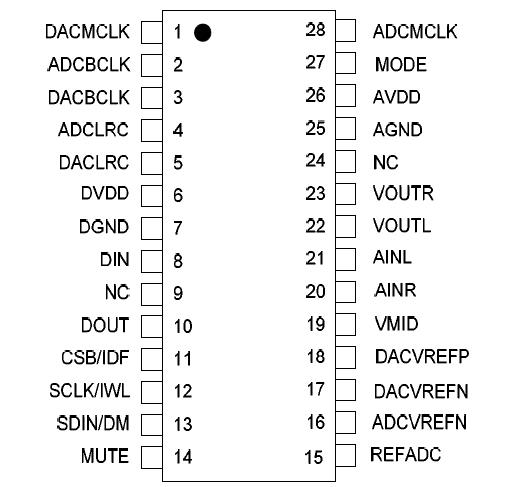

Connection Diagram


Specifications

CONDITION MIN MAX
Digital supply voltage -0.3V +5V
Analogue supply voltage -0.3V +7V
Voltage range digital inputs 1 DGND -0.3V DVDD +0.3V
Voltage range analogue inputs 1 AGND -0.3V AVDD +0.3
Master Clock Frequency   37MHz
Operating temperature range, TA -25°C +85°C
Storage temperature after soldering -65°C +150°C
Notes:
1. Analogue and digital grounds must always be within 0.3V of each other


Description

The WM8569 is a stereo audio codec ideal for DVD, PVR, LCD-TV and automotive applications. Independent ADC and DAC clocking permits separate record and playback sampling rates.

A stereo 24-bit multi-bit sigma delta DAC of the WM8569 with oversampling and digital interpolation filters provides the output signal. Digital audio input word lengths from 16-24 bits and sampling rates from 8kHz to 192kHz are supported.

A stereo 24-bit multi-bit sigma delta ADC of the WM8569 is used. Digital audio output word lengths from 16-24 bits and sampling rates from 32kHz to 96kHz are supported. The DAC and ADC support independent sampling rates.

The audio data interface supports I2S, left justified, right justified and DSP digital audio formats.

The WM8569 is controlled via a 3-wire serial interface. The interface provides access to all features including volume controls, mutes, de-emphasis and power management facilities. A hardware control interface allows access to a limited feature set. The WM8569 is available in a 28-lead  SSOP.
