TL322C

PinoutSpecifications TL322C TL322I UNIT Supply voltage VCC+ (see Note 1) 18 18 V Supply voltage VCC (see Note 1) 18 18 V Supply voltage VCC+ (with respect to VCC) 36 36 V Differential input voltage (see Note 2) ±36 ±36 V Input voltage (see Notes 1 and 3) ±18 ±...

product image

TL322C Picture
See larger image
SeekIC No. : 004520126 Detail

TL322C: PinoutSpecifications TL322C TL322I UNIT Supply voltage VCC+ (see Note 1) 18 18 V Supply voltage VCC (see Note 1) 18 18 V Supply voltage VCC+ (with respect to VCC) 36 36 V ...

TL322C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TL322C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

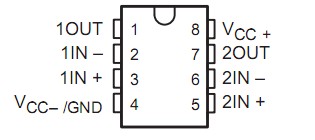

Connection Diagram




Specifications

TL322C TL322I UNIT
Supply voltage VCC+ (see Note 1) 18 18 V
Supply voltage VCC (see Note 1) 18 18 V
Supply voltage VCC+ (with respect to VCC) 36 36 V
Differential input voltage (see Note 2) ±36 ±36 V
Input voltage (see Notes 1 and 3) ±18 ±18 V
Continuous total power disspation See Dissipation Rating Table
Operating free-air temperature range 0 to 70 40 to 85 °C
Storage temperature range 65 to 150 65 to 150 °C
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 260 260 °C
NOTES: 1. These voltage values are with respect to the midpoint between VCC+ and VCC.
2. Differential voltages are at the noninverting input terminal with respect to the inverting input terminal.
3. Neither input must ever be more positive than VCC+ or more negative than VCC.




Description

The TL322C and the TL322I are dual operational amplifiers similar in performance to the uA741 but with several distinct advantages. They are designed to operate from a single supply over a range of voltages from 5 V to 30 V. Operation from split supplies is also possible provided the difference between the two supplies is 5 V to 30 V. The common-mode input range includes the negative supply. Output range is from the negative supply to VCC 1.5 V. Quiescent supply currents per amplifier are typically less than one-half those of the uA741.

The TL322C is characterized for operation from 0°C to 70°C. The TL322I is characterized for operation from 40°C to 85°C.
