Features:

*High input sensitivity results in excellent carrier/noise
   behaviour
*Reduced noise bandwidth for the prescaler with 480-MHz
   LC circuit
*Limitation of the prescaler's internal bandwidth to 960 MHz
*Due to the LC circuit improvement stability against
   oscillations
* Interferences reduced by damping higher frequencies with
    LC circuit
*Switch for double SAW filter input integrated.


Application

Used in indoor units.


Pinout

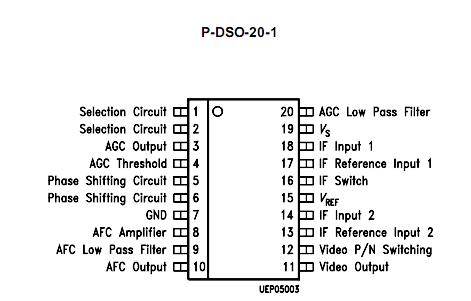

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
Test Condition
min.
max.
Supply voltage
VS
0
6
V
Selectivity circuit
V1, 2
0
6
V
AGC-control voltage output
V3
1
13
V
Open collector
AGC-threshold input
V4
0.3
2
V
Demodulator LC-circuit input
V5, 6
-0.3
3
V
AFC-amplifier
V8
0
6
V
AFC-low pass filter
V9
0
5
V
AFC-output
V10
0
5
V
Video output
V11
1
5
V
Video P/N-switching
V12
-0.3
6
V
IF-inputs
V13, 14, 17,18
0.3
3
V
Reference voltage
V15
0.3
5
V
IF-input selector
V16
0.3
5
V
AGC-low pass filter
V20
-0.3
5
V
Junction temperature
Tj
150
°C
Storage temperature
Tstg
-40
125
°C
Thermal resistance
Rth SA
125
K/W
