MC74VHC1G86DFT1

IC GATE XOR SGL 2INPUT SOT-353

product image

MC74VHC1G86DFT1 Picture
See larger image
SeekIC No. : 004417198 Detail

MC74VHC1G86DFT1: IC GATE XOR SGL 2INPUT SOT-353

MC74VHC1G86DFT1 Data Sheet

floor Price/Ceiling Price

US $ .08~.08 / Piece | Get Latest Price
Part Number:
MC74VHC1G86DFT1
Mfg:
ON Semiconductor
Supply Ability:
5000

Price Break

  • Qty
  • 1~6000
  • Unit Price
  • $.08
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Speed: tPD = 4.8ns (Typ) at VCC = 5V
• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; MM > 200V, CDM > 1500V
• Chip Complexity: 6 FETs or 2 Equivalent Gates


Pinout

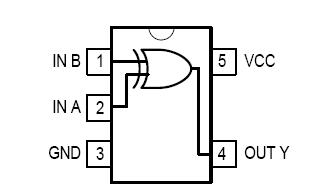

Connection Diagram


Specifications

Characteristics Symbol Value Unit
DC Supply Voltage VCC 0.5 to +7.0 V
DC Input Voltage VIN 0.5 to +7.0 V
DC Output VoltageVCC = 0
High or Low State		 VOUT 0.5 to +7.0
0.5 to VCC + 0.5		 V
Input Diode Current IIK ±20 mA
Output Diode Current (VOUT < GND; VOUT > VCC) IOK ±20 mA
DC Output Current, per Pin IOUT ±25 mA
DC Supply Current, VCC and GND ICC ±25 mA
Power dissipation in still air SC88A?
TSOP5?		 PD 200
 mW
Lead temperature, 1 mm from case for 10 s TL 260 °C
Storage temperature Tstg 65 to +150 °C



Description

The MC74VHC1G86 is an advanced high speed CMOS 2input Exclusive OR gate fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

The internal circuit of MC74VHC1G86DFT1 is composed of three stages, including a buffer output which provides high noise immunity and stable output.

The MC74VHC1G86 input structure provides protection when voltages up to 7V are applied, regardless of the supply voltage. This allows the MC74VHC1G86 to be used to interface 5V circuits to 3V circuits.




Parameters:

Technical/Catalog InformationMC74VHC1G86DFT1
VendorON Semiconductor
CategoryIntegrated Circuits (ICs)
Number of Circuits1 - Single
Package / CaseSC-70-5, SC-88A, SOT-323-5, SOT-353, 5-TSSOP
Logic TypeXOR (Exclusive OR)
PackagingTape & Reel (TR)
Mounting TypeSurface Mount
Number of Inputs2
Current - Output High, Low8mA, 8mA
Supply Voltage2 V ~ 5.5 V
Operating Temperature-55°C ~ 125°C
Voltage - Supply2 V ~ 5.5 V
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names MC74VHC1G86DFT1
MC74VHC1G86DFT1
