MC74VHC1G86

Features: • High Speed: tPD = 4.8ns (Typ) at VCC = 5V• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C• Power Down Protection Provided on Inputs• Balanced Propagation Delays• Pin and Function Compatible with Other Standard Logic Families• Latchup Performance...

product image

MC74VHC1G86 Picture
See larger image
SeekIC No. : 004417197 Detail

MC74VHC1G86: Features: • High Speed: tPD = 4.8ns (Typ) at VCC = 5V• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C• Power Down Protection Provided on Inputs• Balanced Propagation Del...

MC74VHC1G86 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74VHC1G86
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Speed: tPD = 4.8ns (Typ) at VCC = 5V
• Low Power Dissipation: ICC = 2mA (Max) at TA = 25°C
• Power Down Protection Provided on Inputs
• Balanced Propagation Delays
• Pin and Function Compatible with Other Standard Logic Families
• Latchup Performance Exceeds 300mA
• ESD Performance: HBM > 2000V; MM > 200V, CDM > 1500V
• Chip Complexity: 6 FETs or 2 Equivalent Gates


Pinout

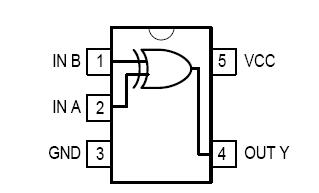

Connection Diagram


Specifications

Characteristics Symbol Value Unit
DC Supply Voltage VCC 0.5 to +7.0 V
DC Input Voltage VIN 0.5 to +7.0 V
DC Output VoltageVCC = 0
High or Low State		 VOUT 0.5 to +7.0
0.5 to VCC + 0.5		 V
Input Diode Current IIK ±20 mA
Output Diode Current (VOUT < GND; VOUT > VCC) IOK ±20 mA
DC Output Current, per Pin IOUT ±25 mA
DC Supply Current, VCC and GND ICC ±25 mA
Power dissipation in still air SC88A?
TSOP5?		 PD 200
 mW
Lead temperature, 1 mm from case for 10 s TL 260 °C
Storage temperature Tstg 65 to +150 °C



Description

The MC74VHC1G86 is an advanced high speed CMOS 2input Exclusive OR gate fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation.

The internal circuit of MC74VHC1G86 is composed of three stages, including a buffer output which provides high noise immunity and stable output.

The MC74VHC1G86 input structure provides protection when voltages up to 7V are applied, regardless of the supply voltage. This allows the MC74VHC1G86 to be used to interface 5V circuits to 3V circuits.
