MC74LCX158

Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic• LVTTL Compatible• LVCMOS Compatible• 24mA Balanced Output Sink and Source Capability• Near Zero Static Supply Current (10mA) Substantially Reduces Sy...

product image

MC74LCX158 Picture
See larger image
SeekIC No. : 004417057 Detail

MC74LCX158: Features: • Designed for 2.7 to 3.6V VCC Operation• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic• LVTTL Compatible• LVCMOS Compatible• 24mA Balanced Outp...

MC74LCX158 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
MC74LCX158
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Designed for 2.7 to 3.6V VCC Operation
• 5V Tolerant Inputs - Interface Capability With 5V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current (10mA) Substantially Reduces System
   Power Requirements
• Latchup Performance Exceeds 500mA
• ESD Performance: Human Body Model >2000V; Machine Model >200V


Pinout

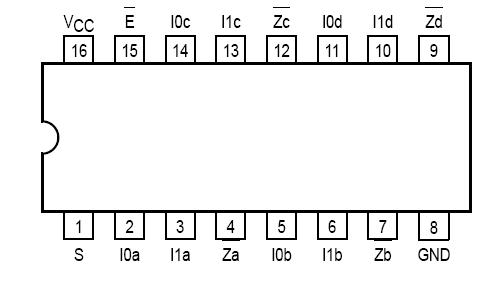

Connection Diagram


Description

The MC74LCX158 is a high performance, quad 2input inverting multiplexer operating from a 2.7 to 3.6V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5V allows MC74LCX158 inputs to be safely driven from 5V devices.

Four bits of data from two sources can be selected using the Select and Enable inputs. The four outputs present the selected data in the inverted form. The MC74LCX158 can also be used as a function generator. Current drive capability is 24mA at the outputs.
